AC Winch TW Series

Heavy Duty Electric Winch - TW Series (200 - 1000 Kgs)


Tw series Winch




Model TW-200 TW-250 TW-300 TW-500 TW-1000
Lifting Capacity 200KG 250KG 300KG 500KG 1000KG
Speed (M/mim) 50HZ 11 11 11 13 18
60HZ 13 13 13 16 22
Steel Rope 6mmx30M 6mmx30M 6mmx30M 8mmx30M 10mmx30M
Voltage 1PH 220V~240V
Motor(KW) 0.50 0.55 0.75 1.6 3.7

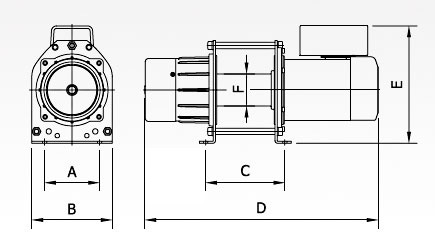

Body dimensions
(mm)
A 142 142 142 161.3 160
B 210 210 210 220 250
C 142 142 142 186 250
D 474 486 527 625 748
E 265 265 265 288 310
F 76 76 76 78 105
NW (KG) 29.7 30.2 33.6 47.1 85.6
GW (KG) 31.1 31.6 35.0 48.7 87.4
Packing (LxWxH) 535x270x325 535x270x325 600x270x325 685x270x325 797x270x325


Product specifications and features are subject to change as a result of technological progress without prior notice.
Three phase motor is available.
