Features : 2 Planetary gears
* High efficient planetary gear.
* Small body, great saving of mounting space.
* Light weight, convenient handling, easy to operate.
* Electromagnetic brake system, most reliable long term performance.
* Separated quick connection for convenience.
* Rigid construction, low noise level, long lift time.
200 KGS
|

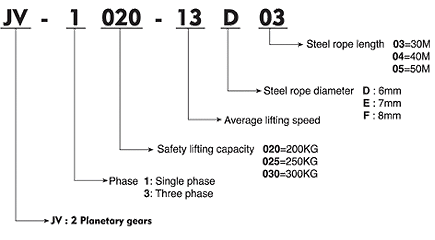

Model
|
JV-1020-13D05
|
JV-1020-16D05
|
JV-1020-22D05
|
JV-1020-27D05
|
| Speed (M/min) |
50HZ |
11
|
13
|
18
|
22
|
| 60HZ |
13
|
16
|
22
|
27
|
| Steel Rope |
6mmx50M
|
| Voltage |
1PH 220~240V
|
| Motor (KW) |
0.55
|
0.75
|
0.75
|
1.10
|

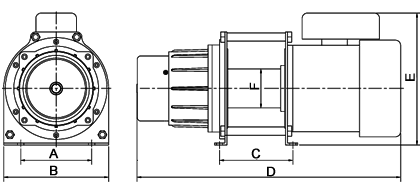

| Body dimensions (mm) |
A |
161.3
|
161.3
|
161.3
|
161.3
|
| B |
220
|
220
|
220
|
220
|
| C |
186
|
186
|
186
|
186
|
| D |
556
|
556
|
556
|
556
|
| E |
280
|
280
|
280
|
280
|
| F |
78
|
78
|
78
|
78
|
| N.W. (KG) |
31.6
|
34.5
|
34.5
|
34.5
|
| G.W. (KG) |
32.0
|
36.0
|
36.0
|
36.0
|
| Packing (LxWxH) |
613x270x325
|
613x270x325
|
613x270x325
|
613x270x325
|
250 KGS
|
Model
|
JV-1025-13D05
|
JV-1025-16D05
|
JV-1025-27D05
|
JV-1025-32D05
|
| Speed (M/min) |
50HZ |
11
|
13
|
22
|
26
|
| 60HZ |
13
|
16
|
27
|
32
|
| Steel Rope |
6mmx50M
|
| Voltage |
1PH 220~240V
|
| Motor (KW) |
0.55
|
0.75
|
1.10
|
1.30
|
| Body dimensions (mm) |
A |
161.3
|
161.3
|
161.3
|
161.3
|
| B |
220
|
220
|
220
|
220
|
| C |
186
|
186
|
186
|
186
|
| D |
556
|
556
|
556
|
556
|
| E |
280
|
280
|
280
|
280
|
| F |
78
|
78
|
78
|
78
|
| N.W. (KG) |
31.6
|
34.5
|
34.5
|
36.5
|
| G.W. (KG) |
33.0
|
36.0
|
36.0
|
38.0
|
| Packing (LxWxH) |
613x270x325
|
613x270x325
|
613x270x325
|
613x270x325
|
|
|
|
|
|
|
|
|
300 KGS
|
Model
|
JV-1030-16D05
|
JV-1030-16E04
|
JV-1030-16F03
|
JV-1030-29D05
|
JV-1030-29E04
|
JV-1030-29F03
|
| Speed (M/min) |
50HZ |
13
|
13
|
13
|
24
|
24
|
24
|
| 60HZ |
16
|
16
|
16
|
29
|
29
|
29
|
| Steel Rope |
6mmx50M
|
7mmx40M
|
8mmx30M
|
6mmx50M
|
7mmx40M
|
8mmx30M
|
| Voltage |
1PH 220~240V
|
| Motor (KW) |
1.10
|
1.10
|
1.10
|
1.60
|
1.60
|
1.60
|
| Body dimensions (mm) |
A |
161.3
|
161.3
|
161.3
|
161.3
|
161.3
|
161.3
|
| B |
220
|
220
|
220
|
220
|
220
|
220
|
| C |
186
|
186
|
186
|
186
|
186
|
186
|
| D |
556
|
556
|
556
|
600
|
600
|
600
|
| E |
280
|
280
|
280
|
288
|
288
|
288
|
| F |
78
|
78
|
78
|
78
|
78
|
78
|
| N.W. (KG) |
38.3
|
38.6
|
37.6
|
46.2
|
46.5
|
45.5
|
| G.W. (KG) |
39.7
|
40.0
|
39.0
|
37.8
|
48.0
|
47.0
|
| Packing (LxWxH) |
613x270x325
|
613x270x325
|
613x270x325
|
642x270x325
|
642x270x325
|
642x270x325
|
Product specifications and features are subject to change as a result of technological progress without prior notice.
Three phase motor is available.
