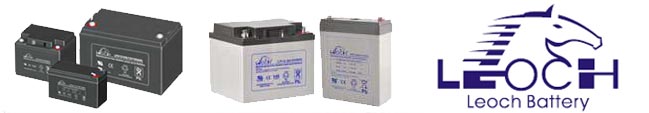

Banner Leoch Battery



LPX UPS battery

LPX-High Current Series


Terminal And Torque

General Features

  1. Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improvethe electric conductivity
  2. Thin plate technology, special grid design, unique paste formula and plate curing process optimize high rate performance
  3. High quality AGM separators with less electrical resistance improve high current discharging properties
  4. ABS material: increase the strength of battery container (Flame-retardant ABS is optional)

Typical Applications

1. UPS (High rate)              2. High power backup supply                          3. Emergency power supply
4. Starting system              5. Power tools 6.Emergency lighting              7. Electric starting

Specifications :

Model Nominal Rated Capacity(AH) Approx Dimension Approx
Weight
Terminal type
Voltage 15min (W/cell) 8HR 5HR 1HR Length Width Height Total Height
(V) 1.60 1.80 1.75 1.60 mm in. mm in. mm in. mm in. kg lbs
  V/cell V/cell V/cell V/cell
LPX12-2.2
12 7.65 2.2 1.93 1.72 178 7.01 35 1.38 60 2.36 66 2.6 0.96 2.12 T1
LPX12-3.2
12 11.8 3.2 2.91 2.47 134 5.28 67 2.64 60.5 2.38 66.5 2.62 1.35 2.98 T1/T2
LPX12-5.4
12 20.4 5.4 4.85 4.39 90 3.54 70 2.76 101 3.98 107 4.21 1.8 3.97 T1/T2
LPX12-6.0
12 22.3 6 5.4 4.54 151 5.94 65 2.56 93.5 3.68 99 3.9 2.18 4.81 T1/T2
LPX12-6.5
12 25.3 6.5 5.65 4.52 151 5.94 51 2.01 93 3.66 98 3.86 1.9 4.19 T1/T2
LPX12-7.0
12 28.4 7 6.4 5.91 151 5.94 65 2.56 93.5 3.68 99 3.9 2.5 5.51 T1/T2
LPX12-7.6
12 32.2 7.6 6.95 6.28 151 5.94 65 2.56 93.5 3.68 99 3.9 2.75 6.06 T1/T2
LPX12-12
12 49.8 12 10.5 8.77 151 5.94 98 3.86 95 3.74 101 3.98 4.05 8.93 T1/T2
LPX12-17
12 72.5 17 15.7 14.2 181.5 7.15 77 3.03 167.5 6.59 167.5 6.59 5.78 12.7 T3
LPX12-18
12 78.4 18 16.2 14.8 181.5 7.15 77 3.03 167.5 6.59 167.5 6.59 6 13.2 T3/T12
LPX12-20
12 82.7 20 18.5 16.7 181.5 7.15 77 3.03 166.5 6.56 166.5 6.56 6.9 15.2 T12
LPX12-24
12 99.8 24 21.8 19.7 166 6.54 175 6.89 125 4.92 125 4.92 8.8 19.4 T3/T12
LPX12-35
12 137.5 33.3 30.7 24.7 195 7.68 130 5.12 164 6.46 180 7.09 10.5 23.2 T10
LPX12-38
12 126.3 36.6 32.8 25.3 197 7.76 165 6.5 170 6.69 170 6.69 13.2 29.1 T6/T10/T12
LPX12-65
12 230.4 65 55 45.2 348 13.7 167 6.57 178 7.01 178 7.01 21.3 47 T6
LPX12-72
12 237.7 72 60 46.4 259 10.2 168 6.61 208 8.19 214 8.43 22.3 49.2 T6/T9
LPX12-100
12 356.1 100 89.5 68.2 330 13 173 6.81 212 8.35 220 8.66 30.4 67 T11
LPX12-120
12 483.8 120 107.2 94.6 410 16.1 177 6.97 225 8.86 225 8.86 37.6 82.9 T11
LPX12-150
12 487.5 150 131 101.3 485 19.1 170 6.69 240 9.45 240 9.45 43.5 95.9 T11
LPX12-200
12 675.8 200 179 136 522 20.6 240 9.45 218 8.58 224 8.82 62.5 137.8 T11
LPX12-250
12 783.3 250 223.5 165.5 522 20.6 268 10.6 220 8.66 226 8.9 73 161 T11
LPX6-100
6 356.1 100 89 78 195 7.68 170 6.69 206.5 8.13 212.5 8.37 15.6 34.4 T6
LPX6-150
6 487.5 150 131 101.3 260 10.2 180 7.09 247 9.72 253 9.96 21.2 46.7 T7
LPX6-200
6 675.8 200 173.5 149.6 322 12.7 178 7.01 228 8.98 234 9.21 30.5 67.3 T11

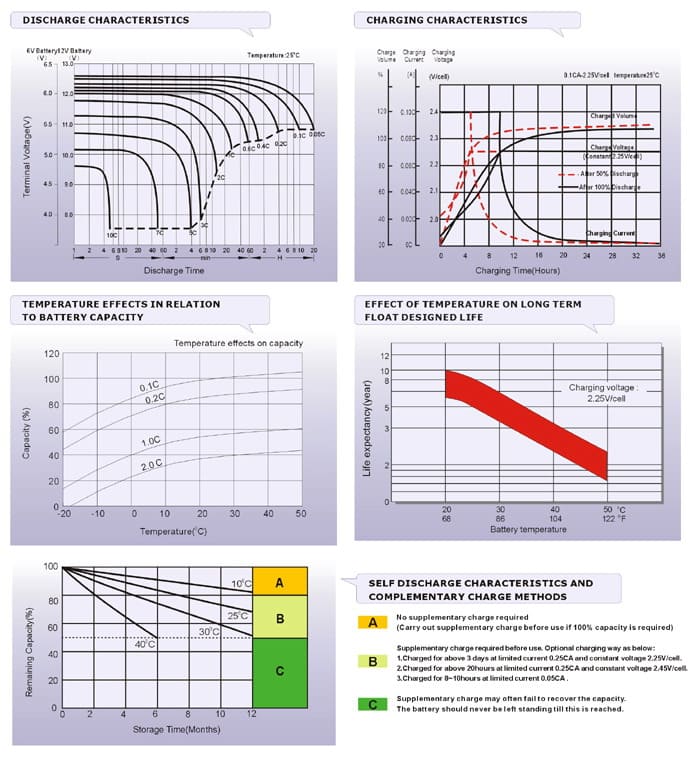

Curve Picture

LPX UPS battery Character
