Jual Edging Power Trowel - Masterpac

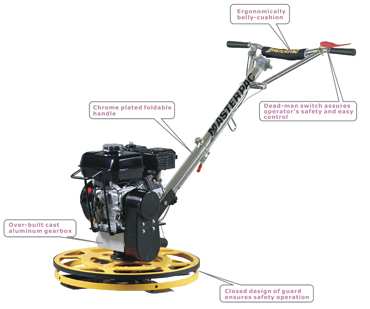

  • Independent rotating flywheel allows operating close to walls and edges.
  • Precision bearings ensure consistent operation of flywheel.
  • Heavy-duty bronze worm gear for extra long-life.
  • Over-built cast aluminum gearbox assures long service interval.
  • Spider assembly features in precision alignment, serviceability, and resistance to application induced bending or wearing.

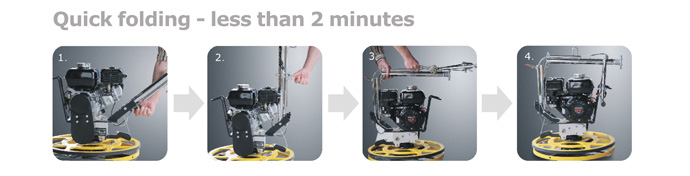

  • Chrome plated foldable handle for easy transportation and storage.
  • Ergonomically belly-cushion comforts for operator's hip (allows to conveniently push the trowel).
  • Dead-man switch assures operator's safety and easy control.
  • Twist knob control ensures precise blade adjustment.
  • Closed design of guard ensures safety operation.
  • Optional Blue blade is with stronger material than standard blades and, combined with its ability to flex slightly, performance is improved and blade life prolonged.
  • Optional plastic blade leaves no burnish marks on the floor.

Product Detail

Working Size (mm)

Engine Power Assy
Model A B C
PMT24 Series 1500 700 900
PMT30 Series 1580 760 900

Technical Specification

Model PMT24H PMT24R
Engine Type Honda GX160 Robin EX17
Power kw(hp) 4.0(5.5) 3.2(4.2)
Weight kg(lb) 56(124) 57(126)
Blade Speed rpm 109-156 109-156
Rotor Dia.cm(in) 61(24) 61(24)
Model PMT30H PMT30R
Engine Type Honda GX160 Robin EX17
Power kw(hp) 4.0(5.5) 4.2(5.7)
Weight kg(lb) 60(132) 62(137)
Blade Speed rpm 109-156 109-156
Rotor Dia.cm(in) 70(30) 70(30)

Note : Honda & Robin is Gasoline Engine Type
