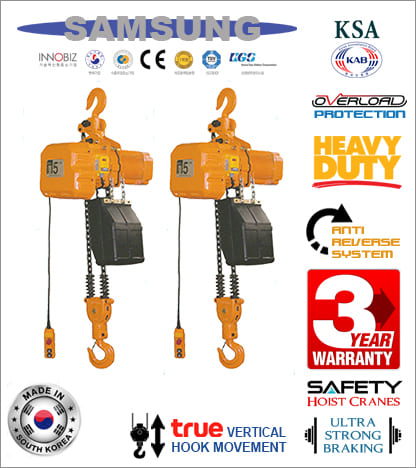

Samsung Hoist SMO-S5000

Back to product
Samsung Electric Chain hoist 5T SMO-S5000
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S5000
: 5 T
: 6m - 100m
: 2.5m/min
: 2.9Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø11.2 x 2 Fall
: IP54
: M5
: ± 159
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 42.392.000,- (6 Meter)
Best Price : Rp. 49.171.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
350 320 115 350 1100

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO-S3000

Back to product
Samsung Electric Chain hoist 3T SMO-S3000
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S3000
: 3 T
: 6m - 100m
: 5.0m/min
: 2.9Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø11.2 x 1 Fall
: IP54
: M5
: ± 121
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 34.694.000,- (6 Meter)
Best Price : Rp. 38.303.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
315 245 106 243 720

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist

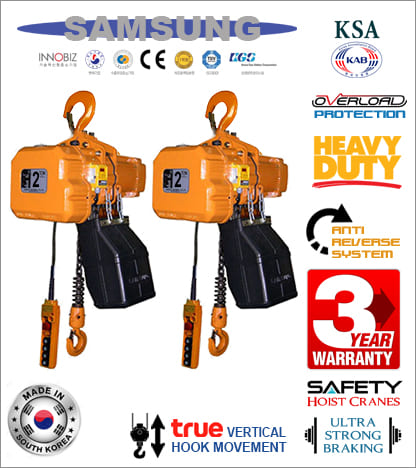

Samsung Hoist SMO-S2000H

Back to product
Samsung Electric Chain hoist 2T SMO-S2000H
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S2000H
: 2 T
: 6m - 100m
: 7.0m/min
: 2.9Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø11.2 x 1 Fall
: IP54
: M5
: ± 121
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 32.057.000,- (6 Meter)
Best Price : Rp. 35.666.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 243 580

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO-S2000

Back to product
Samsung Electric Chain hoist 2T SMO-S2000
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S2000
: 2 T
: 6m - 100m
: 2.9m/min
: 1.25Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 2 Fall
: IP54
: M5
: ±
80 Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 22.801.000,- (6 Meter)
Best Price : Rp. 26.410.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 243 580

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist

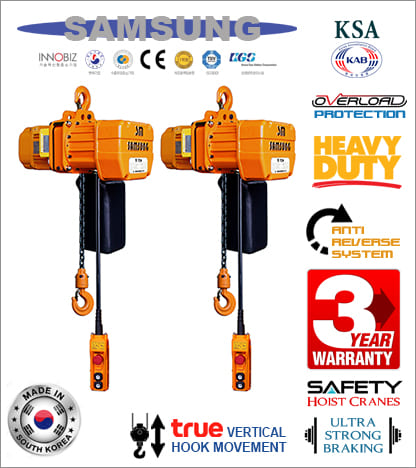

Samsung Hoist SMO-S1000

Back to product
Samsung Electric Chain hoist 1T SMO-S1000
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S1000
: 1 T
: 6m - 100m
: 5.8m/min
: 1.25Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 1 Fall
: IP54
: M5
: ±
58 Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 18.233.000,- (6 Meter)
Best Price : Rp. 20.244.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

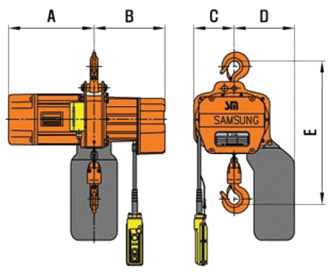

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 210 510

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO-S500H

Back to product
Samsung Electric Chain hoist 500Kg SMO-S500H
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S500H
: 500 kg
: 6m - 100m
: 9.0m/min
: 1.25Kw x 4P

: 3Ph/380V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 1 Fall
: IP54
: M5
: ±
58 Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 17.966.000,- (6 Meter)
Best Price : Rp. 19.977.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimension Samsung hoist 1T TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 210 510

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO series

Hoist seri ini kuat dan aman digunakan, seri SMO didasarkan pada teknologi dan pengalaman yang terakumulasi selama puluhan tahun dari berbagai perbaikan untuk memenuhi kebutuhan hoisting efektif untuk peralatan handling diperusahaan anda.

Type Samsung Hoist SMO 3 Phase

Samsung Hoist SMO-S500H Samsung Hoist SMO-S1000 Samsung Hoist SMO-S2000 Samsung Hoist SMO-S2000H
Samsung Hoist SMO-S3000 Samsung Hoist SMO-S5000

Samsung Hoist SMO-S2000SP

Kembali ke Produk
Samsung-Hoist-Product-SMO-S2000-SP
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S2000SP
: 2 Ton
: 6m - 100m
: 2.9m/min
: 1.5Kw x 4P

: 1Ph/220V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 1 Fall
: IP54
: M5
: ± 58
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 26.437.000,- (6 Meter)
Best Price : Rp. 30.033.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimensi Samsung hoist B1
TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 210 530

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO-S1000

Kembali ke Produk
Samsung-Hoist-Product-SMO-S1000-SP
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S1000SP
: 1 Ton
: 6m - 100m
: 5.8m/min
: 1.5Kw x 4P

: 1Ph/220V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 1 Fall
: IP54
: M5
: ± 58
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 21.403.000,- (6 Meter)
Best Price : Rp. 23.414.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimensi Samsung hoist B1
TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 210 510

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist
Samsung Hoist SMO-S500H

Kembali ke Produk
Samsung-Hoist-Product-SMO-S500SP
Technical Specification :
Model
Capacity
Lifting Heigh
Hoisting Speed
Hoisting Motor
Power Source
Rating
Insulation
Control
Load Limiter
Thermal Limiter
Reverse Protect
Gearbox
Brake System
Chain Fall
Index Protection
ISO Class
Weight
Pendant
Emergency Stop
Warranty
Origin
: SMO-S500SP
: 500 Kg
: 6m - 100m
: 9m/min
: 1.25Kw x 4P

: 1Ph/220V/50Hz
: 40% ED
: F Class
: 48 VDC
: OLP Device
: Bimetal Relay
: Anti-Reverse
: Lubricated
: DC Brake
: Ø7.1 x 1 Fall
: IP54
: M5
: ± 58
Kgs
: 2 Point (U,D)
: Including
: 3 Years
: Made In Korea

Best Price :
Rp. 19.818.000,- (6 Meter)
Best Price : Rp. 21.829.000,- (12 Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya,
  Medan & Bandung.

Dimensi Samsung hoist B1
TECHNICAL DIMENSIONS :
Legend A B C D
E
Dimension (Approx.) (mm)
295 245 106 210 510

Samsung Hoist Certification :
Samsung Hoist Certification
Samsung Hoist

Type Samsung Hoist SMO 1 Phase

Samsung Hoist SMO-S500SP Product Samsung Hoist SMO-S1000SP Product Samsung Hoist SMO-S2000SP

SAMSUNG seri SMO adalah heavy duty hoist class from Samsung Machinery Co., Ltd. (Korea). Seri ini merupakan  Hoist yang kuat dan aman, seri SMO didasarkan pada teknologi dan pengalaman yang terakumulasi selama puluhan tahun dari berbagai perbaikan untuk memenuhi kebutuhan hoisting, efektif untuk peralatan handling. Fitur:
* SMO Series dirancang dan dibuat untuk daya tahan kelas tinggi dari standar industri internasional.
* Beragam kapasitas standar tersedia dari 250 Kgs sampai 20 Ton.
* Silent two stage of coaxial gearbox menjadikan silent electric chain hoist terbaik dikelasnya.
* Stabil & karakter mengangkat cepat untuk mendapatkan  material handling lebih halus.
* Indeks perlindungan tinggi  hingga IP 54 dengan tahan debu dan tahan air kemasan & segel.
* Dilengkapi dengan perangkat Perlindungan Overload untuk keselamatan operasional tingkat tinggi.



Applications on Crane Construction :

LGM Suspension Crane (Underhung) LGM overhead single girder crane LGM Semi Gantry Crane
Samsung Chain Hoist untuk aplikasi
crane jenis suspension/ Underhung.
Samsung chain hoist untuk aplikasi
jenis top running overhead crane.
Samsung chain hoist untuk aplikasi
jenis semi gantry crane.



LGM Monorail Hoist Crane LGM Jib Crane LGM Single Girder Gantry Crane
Samsung chain hoist untuk aplikasi
crane jenis monorail / single rail.
Samsung chain hoist untuk aplikasi
crane jenis Jib/Pillar Crane.
Samsung chain hoist untuk aplikasi
single girder gantry crane.

Key Features

LGM hoist 3 years warranty LGM Hoist Overload Protector Device LGM Hoist Auto Adjust Brake System Samsung Hoist High Torque Electric Motor
Samsung Hoist dgn garansi
3 tahun memberikan
jaminan kinerja terbaik
bagi anda..
satu2nya hoist dgn overl-
oad protector untuk menc-
egah resiko kelebihan
beban angkat.
Sistem brake pada hoist
samsung mampu melak-
ukan adjusting secara auto
agar brake maksimal.
Samsung Hoistmenggun-
akan high torque induction
motor untuk tenaga
yang kuat & cepat.




LGM 2 step limit switch Samsung Hoist Precise Load Chain Guide System Samsung 2 Stage Gearbox LGM Hoist Forged Steel Hook
Samsung menggunakan 2
step safety limit switch utk
meningkatkan keamanan
limit switch stop utk hook.
Samsung Hoist menggunakan
Load Chain Guide System
untuk keamanan dan akurasi
pergerakan rantai.
Samsung Hoist dengan
2 stage gearbox system
utk kehandalan, keamanan
& kinerja gearbox
Samsung dgn full forged
alloy steel hook agar hook
benar2 rigid dan handal
jangka panjang.




LGM Finite Element Analysis Frame LGM Hoist Low Operating Costs LGM Hoist Ultra Durable for all Applications Samsung Hoist Original Electrical panel
Konstruksi samsung Hoist
didesain dgn Finite
Element Method untuk
kekuatan maksimal.
Samsung Hoist dgn
biaya operasional rendah
karena kehandalan dan
keunggulan teknologi.
Samsung Hoist adalah
hoist ultra handal untuk
segala aplikasi, bekerja
 maksimal siang malam.
Samsung hoist dgn panel
elektrik original, bukan
rakitan lokal. Komponen
asli dari pabrik samsung.




LGM Hoist Lifetime Warranty Pendant Cable LGM Hoist Non Asbestos Durable Brake Disk Samsung Hoist Open Design Easy to Maintenance LGM Hoist Emergency Stop Push Button
Samsung Hoist dgn pendant
cable spesial anti-putus.
Dijamin seumur hidup
kabel tidak akan putus.
Samsung Hoist dengan brake
non asbestos yang sangat
tahan lama & tidak beracun
aman bagi manusia.
Samsung Hoist dgn desain
terbuka dan sederhana
sehingga sangat mudah
untuk maintenance.
Samsung  Hoist dilengkapi
dgn emergency stop push
button untuk safety.
Tombol pengaman hoist.

Applications on Industries & Commercials :

Samsung Hoist banyak digunakan dalam berbagai jenis industri, komersial, militer, komersial dll. Dengan basis populasi customer yang besar di berbagai bidang Samsung Hoist adalah pilihan utama para user yang mengerti kualitas hoist terbaik dan berpikiran jangka panjang. Samsung Hoist umum digunakan di industri misalnya pabrik, workshop, gudang, dll. Samsung Hoist biasanya digunakan dengan konstruksi pendukung monorail, overhead crane, semi gantry crane, gantry crane dan jib/pillar crane.


LGM Hoist for Industries
Industrial

LGM for warehouse
Warehouses/Logistics

LGM Hoist for Construction
Civil Works

LGM Hoist for Military
Military & Defense







LGM Hoist for Mining
Mining

LGM Hoist for Public Services
Public Services

LGM Hoist for Powerplant
Powerplant

LGM Hoist for Petrochemical
Petrochemical







LGM Hoist for Municipal Trash Control
Trash Control

LGM Hoist for Agriculture
Agriculture

LGM Hoist for Oil & Gas
Oil & Gas

LGM Hoist for Workshop
Workshop



Samsung Hoist Client Reference

Samsung Hoist Lower Banner
