JUAL MESIN X-RAY TERLENGKAP DENGAN HARGA TERJANGKAU


Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment - GV-5536 is a practical security equipment which has been widely applied for public security organs and its medium tunnel design is specially for objects’ inspection such as backpacks, cabin baggage, parcels and so on. GV-5536 has high mobility (and could be easily move to any locations which need the security inspection) through rolling casters, integrated monitor and keyboard. GV-5536 also can be operated remotely via customized keyboard line, video cable and USB cable which can up to 5 meters long

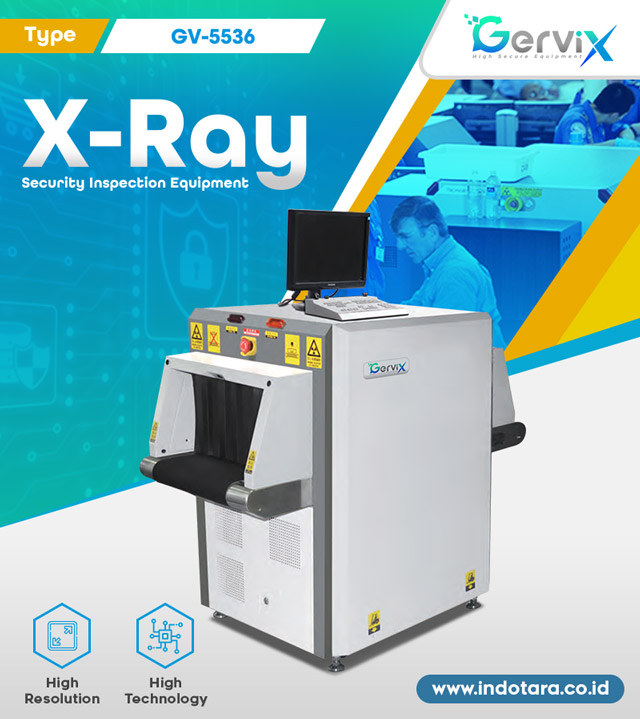

GV-5536

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment

Specification Features

GENERAL SPECIFICATION
Tunnel size	:	555 mm (W) x 360 mm (H)
Conveyor Speed	:	0.2 m/s
Conveyor Height	:	730 mm
Max. Load	:	100 kg (Evenly distributed)
Resolution	:	Typical: AWG 40 Standard: AWG 38
Penetration (Steel)	:	Typical: 32 mm Standard: 30 mm
Spatial Resolution	:	Horizontal : Φ1.0 mm Vertical : Φ1.0 mm
Image Resolution	:	19"LED (Single Display)
IMAGE PROCESSING SYSTEM
Display	:	Black & White
Processing Function	:	F1/F2/F3 self-definition combination, edge enhancement, negative, partial enhancement, gray scale scan.
Saves Capacity & Pull back	:	100,000 images / infinite review (the previous pictures)
Resolution	:	1440 x 900
Processing & Gray Scale	:	24Bit real-time processing / 65536
Enlargement	:	Up to 64X dynamic continuous zoom & panning
X-RAY GENERATOR
Anode Voltage	:	140 KV (adjustable)
Beam Direction	:	From bottom
Cooling & Running Cycle	:	Sealed oil cooling & 100 %
X-Ray Sensor	:	Multi-energy L photoelectric diode array detector
IPC CONFIGURATION
Standard Function	:	Win7; RAM: 2GB; Hard Disk: 500G.
Optional Function	:	RAM: 4G, 8G, 16G; Hard Disk: 1T, 2T; Video Card: 2G, 4G, 8G;
X-RAY SECURITY
Leakage	:	<1µGy/h (5cm distance from outer), According to the national and international Safety standard
Film Safety	:	According to the ISO1600 (33DIN) High speed standard
WARRANTY
Warranty	:	2 Years

• Shiny clear images
• Sophisticated design with multi-functions operator interface
• High- resolution
• Can increase the conveyor speed to 0.3m/s(Customized)
• Collection the high-speed parallel of detection data
• With network interface to achieve total network management
• Support JPG & BMP image transformation format to USB

*Price Include Tax

Best Price : Call Sales

GERVIX X-RAY SECURITY INSPECTION PRODUCT:
HIGH RESOLUTION, HIGH TECHNOLOGY, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

SIDE INFORMATION

DESCRIPTION

System Function
Alarm Function	Bi-directional Scanning


Browse	Date & Time Display
Fault Self-diagnosis and Maintenance Functions	High Density Alarm
Image Navigation	Image Magnification Display
Limits of Authority Manag for Operator	Luggage Counting
System Working Timing	Network Interface
TIP	One-key Shutdown
User Management	Self-check Power-on
Urgent Stop	Save and Retrieval
Working Status Display	Save As
Extend Protective Cover and Doublelayer Lead Curtain In Entry and Exit	Ultra-thin Scanning
X-Autosight	X-Ray Emission Timing
Image Split Joint

Optional Function
Double Display	Voltage Stabilizer


GV-BB100 Black Box	UPS Uninterruptible Power Supply
OTP The Operator Training Program	0.6m Entry / Exit Flatbed Roller Tables

BLACK BOX

UUsing the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.

INSTALLATION DATA
Size		1449 mm (L) x 798 mm (W) x 1213 mm (H)
Weight		375 KG
Working Temperature / Humidity		0℃～ + 45℃／ 10%～ 95% (non-condensing)
Storage Temperature / Humidity		- 40℃～ + 60℃／ 10%～ 95%(non-condensing)
Power Supply		AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption		About 0.37 (KVA)

GERVIX X-RAY LUGGAGE SCANNER GV-5536
