Gervix Best Security Equipment

Gervix Best Security Equipment - Gervix adalah Brand dengan Inovasi teknologi dari X-Ray High Security Inspection Equipment, yang menyediakan solusi peralatan keamanan terlengkap dan berkualitas tinggi. Teknologi X-Ray yang canggih tak henti-hentinya berupaya meningkatkan taraf industri nasional. Produk yang kami tawarkan seperti X-Ray Security Inspection Equipment, Mobile X-Ray Security Inspection Equipment, Explosive Detector dan Metal Detector. Dengan diaplikasikan pada bidang industrial Railway Stations, Pavilions, Public Buildings, Government Buildings, dan Airport.

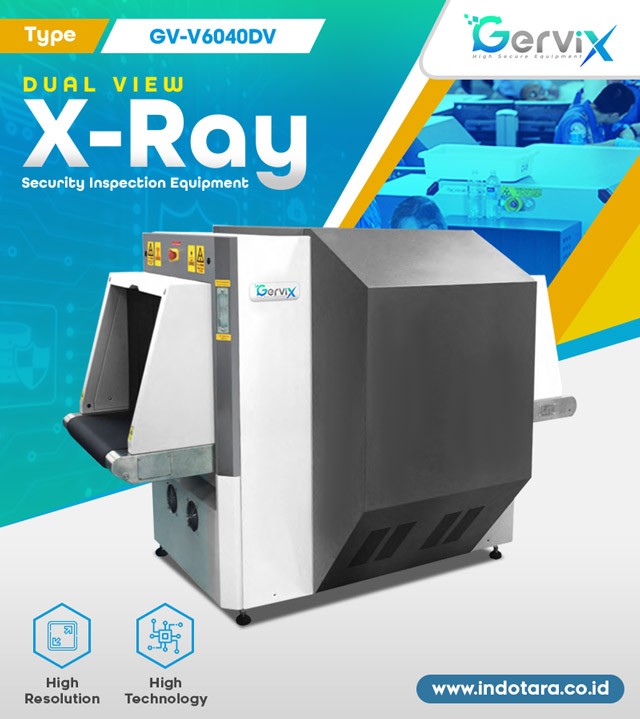

Gervix High Security X-ray Luggage Scanner GV-V6040D
Product Specification
Best Price : Rp 596,308,081 / Unit
Promo Price : Rp 429,341,819 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DEE-15190
Gervix High Security X-ray Luggage Scanner GV-V6040D
Model : GV-V6040D
Tunnel Size : 620 mm x 420 mm ( WxH )
ConveyorSpeed : 0.2 m/s
Conveyor Heigh : 678 mm
Max. Load : 160Kg ( Evenly distributed )
Resolution : Typical: AWG 38 mmStandard: AWG 40
Penetration(Steel) : 27 mm (from bottom) 32 mm (from side)
Spatial Res. (From bottom): Horizontal: ?1.0 mm Vertical:?1.0 mm
(From side) : Horizontal: ?1.0 mm Vertical:?1.0 mm
Image Resolution : 19” LED ( Single Display )
Display : Black/White, Color
Saves Capacity & Pull Back : 100.000 images / infinite review
Image Processing Resolution : 1440 x 900
Processing & Gray Scale : 24 Bit real-time processing
65536 Enlargement : Up to 64X dynamic continuous zoom & painting
Anode Voltage : 160KV (Adjustable)
Beam Direction : From Bottom& from side
Cooling & Running Cycle : Sealed oil cooling & 100%
X-Ray Sensor : Multi-energy L photoelectric diode array detector
IPC Configuration : Win7 ; Ram 2GB ; Hard Disk 500GB. Vide card: 2G
Leakage : <2µGy/h ( 5cm distance from outer ) according to ISS
Film Safety : According to the ISO1600 ( 33DIN ) High Speed Standard
Feature:
- Sophisticated design with multi-functions operator interface
- Can increase the conveyor speed to 0.3m/s ( Customized )
- Collection the high-speed parallel of detection data
- With network interface to achieve total network management
- Support JPG & BMP image transformation format to USB
- High Reliability Japan Technology
REQUEST QUOTE
Get your quotation less than 1 minute now!!
SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Bi-directional Scanning
Browse
Date & Time Display
Fault Self-diagnosis and Maintenance Functions High Density Alarm
Image Navigation Image Magnification Display
Limits of Authority Manag for Operator Luggage Counting
System Working Timing Network Interface
TIP One-key Shutdown
User Management Self-check Power-on
Urgent Stop Save and Retrieval
Working Status Display Save As
Extend Protective Cover and
Doublelayer Lead Curtain In Entry and Exit
Ultra-thin Scanning
X-Autosight X-Ray Emission Timing
Image Split Joint

Optional Function
GV-BB100 Black Box
0.6m Entry Flatbed Roller Tables,
1.2m Exit Skateboard
Voltage Stabilizer
Energy Saving
Energy Saving
OTP The Operator Training Program
UPS Uninterruptible Power Supply

BLACK BOX
UUsing the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 2148 mm (L) x 1117 mm (W) x 1322 mm (H)
Weight
700 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.49 (KVA)

download catalog Waxler Packaging Equipments


HATI-HATI GUNAKAN SELALU X-RAY SECURITY KUALITAS TERBAIK
Gervix menyediakan solusi peralatan keamanan terlengkap berkualitas tinggi, bergaransi lama, dan ada teknisinya.
X-Ray Security harus bisa dipakai terus menerus karena didukung oleh dealer yang bertanggung jawab.
