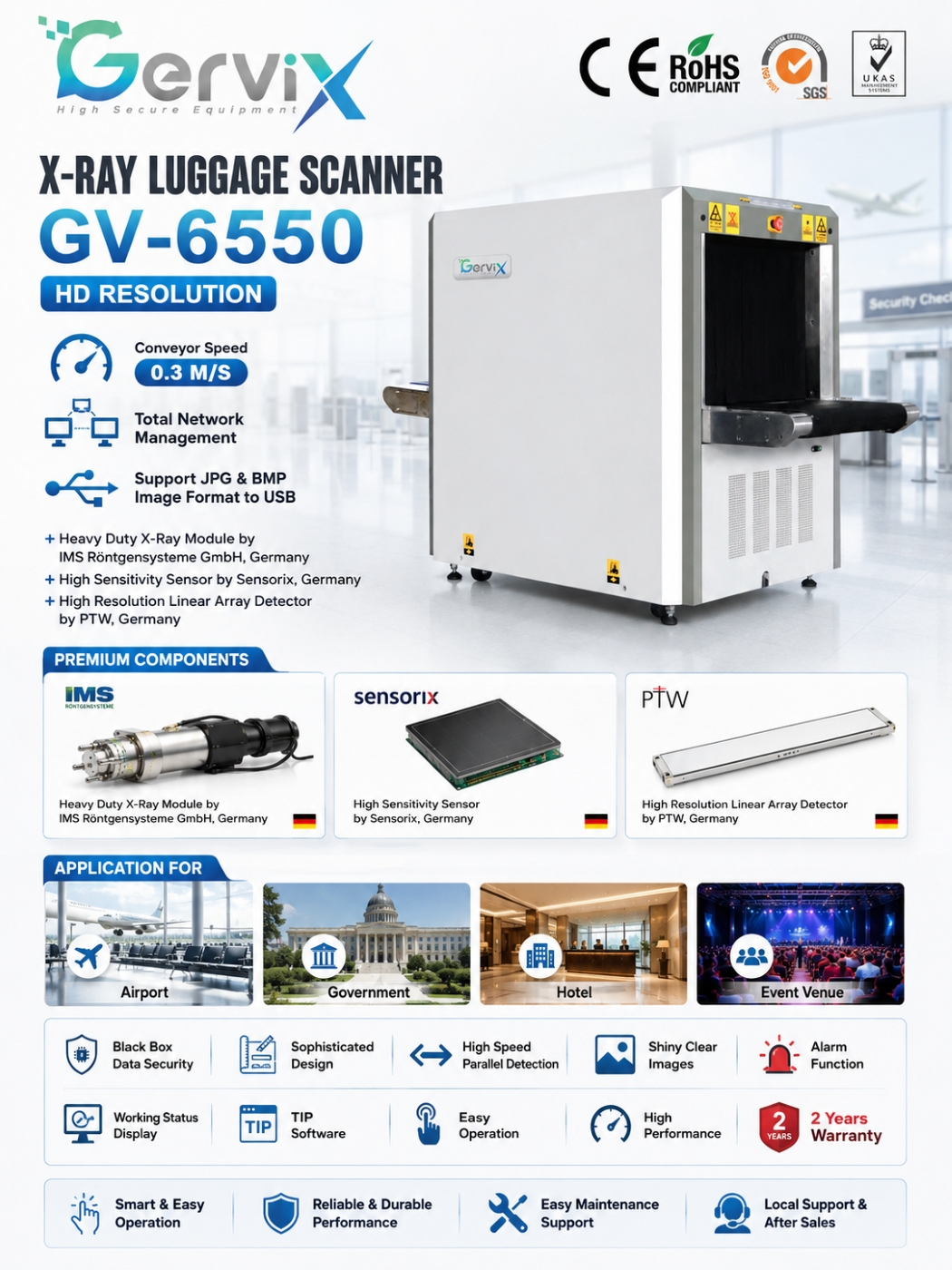

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment - GV-6550 is a practical medium tunnel design security equipment which has been widely applied for railways, civil aviation, rail transportation and other large traffic places. GV-6550 has high mobility (and could be easily move to any locations which need the security inspection) through rolling casters. GV-6550 is an ideal model for baggage scanning because of its reasonable design and various image processing functions.

GV-6550
Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
GENERAL SPECIFICATION
Tunnel size : 650 mm (W) x 515 mm (H)
Conveyor Speed : 0.2 m/s
Conveyor Height : 687 mm
Max. Load : 160 kg (Evenly distributed)
Resolution : Typical: AWG 40 Standard: AWG 38
Penetration (Steel) : Typical: 34 mm Standard: 30 mm
Spatial Resolution : Horizontal : Φ1.0 mm Vertical : Φ1.0 mm
Image Resolution : 19"LED (Single Display)
IMAGE PROCESSING SYSTEM
Display : Black & White, Color
Processing Function : F1/F2/F3 self-definition combination, edge enhancement, negative, partial enhancement, gray scale scan.
Saves Capacity & Pull back : 100,000 images / infinite review (the previous pictures)
Resolution : 1440 x 900
Processing & Gray Scale : 24Bit real-time processing / 65536
Enlargement : Up to 64X dynamic continuous zoom & panning
X-RAY GENERATOR
Anode Voltage : 160 KV (adjustable)
Beam Direction : From bottom
Cooling & Running Cycle : Sealed oil cooling & 100 %
X-Ray Sensor : Multi-energy L photoelectric diode array detector
IPC CONFIGURATION
Standard Function : Win7;
RAM: 2GB;
Hard Disk: 500G.
Optional Function : RAM: 4G, 8G, 16G;
Hard Disk: 1T, 2T;
Video Card: 2G,  4G, 8G;
X-RAY SECURITY
Leakage : <1µGy/h (5cm distance from outer), According to the national and international Safety standard
Film Safety : According to the ISO1600 (33DIN) High speed standard
WARRANTY
Warranty
: 2 Years
•  Shiny clear images
•  Sophisticated design with multi-functions operator interface
•  High- resolution
•  Can increase the conveyor speed to 0.3m/s(Customized)
•  Collection the high-speed parallel of detection data
•  With network interface to achieve total network management
•  Support JPG & BMP image transformation format to USB

*Price Include Tax
Best Price : Call Sales

GERVIX X-RAY SECURITY INSPECTION PRODUCT:
HIGH RESOLUTION, HIGH TECHNOLOGY, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Date & Time Display
Browse
High Density Alarm
Fault Self-diagnosis and Maintenance Functions Image Magnification Display
Image Navigation Luggage Counting
Limits of Authority Manag for Operator Network Interface
System Working Timing One-key Shutdown
TIP Self-check Power-on
User Management Save and Retrieval
Urgent Stop Save As
Working Status Display Ultra-thin Scanning
X-Autosight Image Split Joint
Bi-directional Scanning


Optional Function
Double Display
Voltage Stabilizer
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
0.6m Entry / Exit Flatbed Roller Tables
Energy Saving LED Screen Display
0.6m Entry Flatbed Roller Tables,
1.2m Exit Skateboard
Extend Protective Cover and
Double-layer Lead Curtain In Entry
And Exit
Voice Announcement Function Voice Recording Function

BLACK BOX
UUsing the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 2038 mm (L) x 907 mm (W) x 1375 mm (H)
Weight
600 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.43 (KVA)
