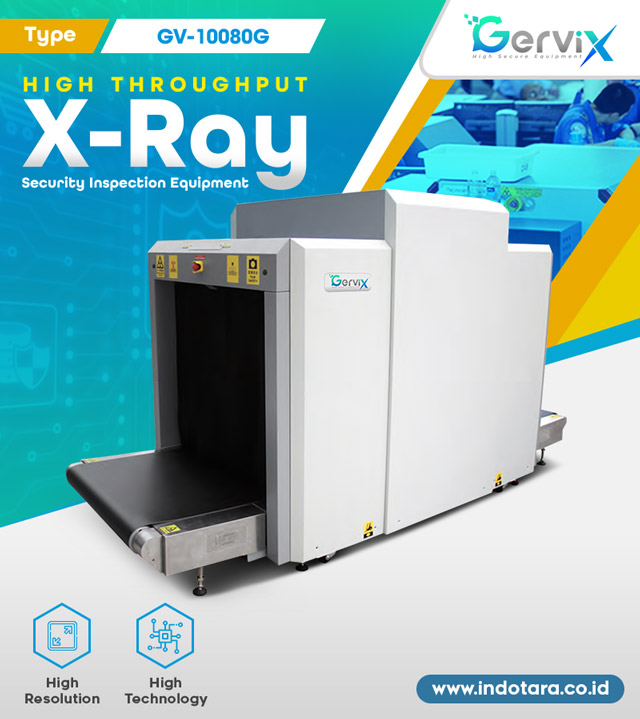

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment - GV-10080G is a practical large tunnel design x-ray security equipment for large size luggage inspection such as bulky objects, oversize luggage, freights and so on. GV-10080G-10080G can increase the security check efficiency to 2 times while maintaining image quality, through its adjustable conveyor speed (0.2 or 0.4 m/s) and proprietary image display technology.
|
|
GENERAL SPECIFICATION | ||
Tunnel size | : | 1023 mm (W) x 822 mm (H) |
Conveyor Speed | : | 0.2 m/s、 0.4 m/s (Two steps adjustable) |
Conveyor Height | : | 300 mm |
Max. Load | : | 200 kg (Evenly distributed) |
Resolution | : | Typical: AWG 40 Standard: AWG 36 |
Penetration (Steel) | : | Typical: 32 mm Standard: 30 mm |
Spatial Resolution |
: | Horizontal: Φ1.3 mm Vertical: Φ1.6 mm |
Image Resolution | : | 19"LED (Single Display) |
IMAGE PROCESSING SYSTEM | ||
Display | : | Black & White, Color |
Processing Function | : | F1/F2/F3 self-definition combination, edge enhancement, negative, partial enhancement, gray scale scan. |
Saves Capacity & Pull back | : | 100,000 images / infinite review (the previous pictures) |
Resolution | : | 1440 x 900 |
Processing & Gray Scale | : | 24Bit real-time processing / 65536 |
Enlargement | : | Up to 64X dynamic continuous zoom & panning |
X-RAY GENERATOR | ||
Anode Voltage | : | 160 KV (adjustable) |
Beam Direction | : | From Top |
Cooling & Running Cycle | : | Sealed oil cooling & 100 % |
X-Ray Sensor | : | Multi-energy L photoelectric diode array detector |
IPC CONFIGURATION | ||
Standard Function | : | Win7; RAM: 2GB; Hard Disk: 500G. |
Optional Function | : | RAM: 4G, 8G, 16G; Hard Disk: 1T, 2T; Video Card: 2G, 4G, 8G; |
X-RAY SECURITY | ||
Leakage | : | < 1 µGy/h (5cm distance from outer), According to the national and international Safety standard |
Film Safety | : | According to the ISO1600 (33DIN) High speed standard |
WARRANTY |
||
Warranty |
: | 2 Years |
System Function |
|
---|---|
Alarm Function | Date & Time Display |
Browse |
High Density Alarm |
Fault Self-diagnosis and Maintenance Functions | Image Magnification Display |
Image Navigation | Luggage Counting |
Limits of Authority Manag for Operator | Network Interface |
System Working Timing | One-key Shutdown |
TIP | Self-check Power-on |
User Management | Save and Retrieval |
Urgent Stop | Save As |
Working Status Display | Ultra-thin Scanning |
X-Autosight | Image Split Joint |
X-Ray Emission Timing |
|
Optional Function |
|
Bi-directional Scanning | Voltage Stabilizer |
GV-BB100 Black Box |
UPS Uninterruptible Power Supply |
OTP The Operator Training Program |
Voice Recording Function |
Energy Saving | LED Screen Display |
Voice Announcement Function | |
INSTALLATION DATA |
|||||
---|---|---|---|---|---|
Size | 2992 mm (L) x 1317 mm (W) x 1605 mm (H) | ||||
Weight |
950 KG | ||||
Working Temperature / Humidity |
0℃~ + 45℃/ 10%~ 95% (non-condensing) | ||||
Storage Temperature / Humidity |
- 40℃~ + 60℃/ 10%~ 95%(non-condensing) | ||||
Power Supply |
AC 220 V(+10%~-15%) 50±3 (Hz) | ||||
Power consumption | About 0.50 (KVA) | ||||
