Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment - GV-100100G is a practical large tunnel design x-ray security equipment for large size luggage inspection such as bulky objects, oversize luggage, freights and so on. GV-100100G can increase the security check efficiency to 2 times while maintaining image quality, through its adjustable conveyor speed (0.2 or 0.4 m/s) and proprietary image display technology

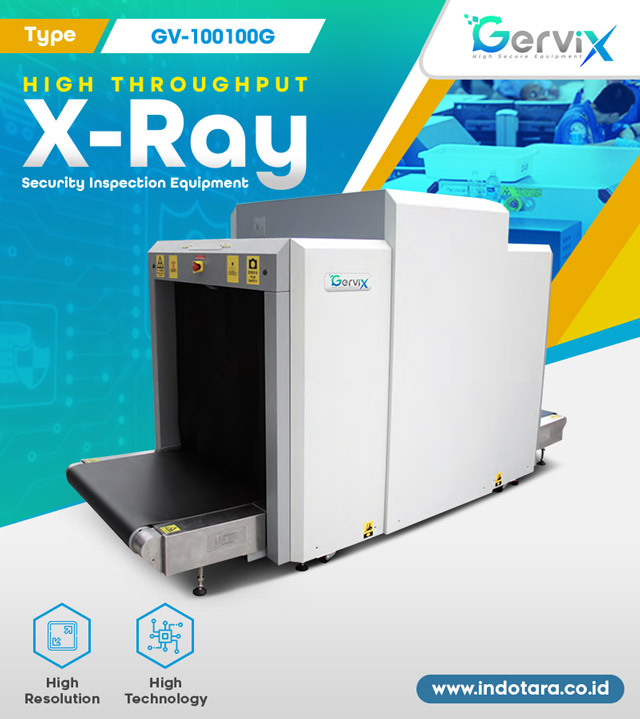

GV-100100G (High Throughput)
Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
GENERAL SPECIFICATION
Tunnel size : 1020 mm (W) x 1020 mm (H)
Conveyor Speed : 0.2 m/s、 0.4 m/s (Two steps adjustable)
Conveyor Height : 300 mm
Max. Load : 200 kg (Evenly distributed)
Resolution : Typical: AWG 40 Standard: AWG 36
Penetration (Steel) : Typical: 32 mm Standard: 30 mm
Spatial Resolution
: Horizontal: Φ1.3 mm Vertical: Φ1.6 mm
Image Resolution : 19"LED (Single Display)
IMAGE PROCESSING SYSTEM
Display : Black & White, Color
Processing Function : F1/F2/F3 self-definition combination, edge enhancement, negative, partial enhancement, gray scale scan.
Saves Capacity & Pull back : 100,000 images / infinite review (the previous pictures)
Resolution : 1440 x 900
Processing & Gray Scale : 24Bit real-time processing / 65536
Enlargement : Up to 64X dynamic continuous zoom & panning
X-RAY GENERATOR
Anode Voltage : 160 KV (adjustable)
Beam Direction : From Top
Cooling & Running Cycle : Sealed oil cooling & 100 %
X-Ray Sensor : Multi-energy L photoelectric diode array detector
IPC CONFIGURATION
Standard Function : Win7;
RAM: 2GB;
Hard Disk: 500G.
Optional Function : RAM: 4G, 8G, 16G;
Hard Disk: 1T, 2T;
Video Card: 2G,  4G, 8G;
X-RAY SECURITY
Leakage : < 2 µGy/h (5cm distance from outer), According to the national and international Safety standard
Film Safety : According to the ISO1600 (33DIN) High speed standard
WARRANTY
Warranty
: 2 Years
•  Shiny clear images
•  Sophisticated design with multi-functions operator interface
•  High- resolution
•  Collection the high-speed parallel of detection data
•  With network interface to achieve total network management
•  Support JPG & BMP image transformation format to USB

*Price Include Tax
Best Price : Call Sales

GERVIX X-RAY SECURITY INSPECTION PRODUCT:
HIGH RESOLUTION, HIGH TECHNOLOGY, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

SIDE INFORMATION

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment
nc


DESCRIPTION
System Function
Alarm Function Date & Time Display
Browse
High Density Alarm
Fault Self-diagnosis and Maintenance Functions Image Magnification Display
Image Navigation Luggage Counting
Limits of Authority Manag for Operator Network Interface
System Working Timing One-key Shutdown
TIP Self-check Power-on
User Management Save and Retrieval
Urgent Stop Save As
Working Status Display Ultra-thin Scanning
X-Autosight Image Split Joint
X-Ray Emission Timing

Optional Function
Bi-directional Scanning Voltage Stabilizer
GV-BB100 Black Box
UPS Uninterruptible Power Supply
OTP The Operator Training Program
Voice Recording Function
Energy Saving LED Screen Display
Voice Announcement Function

BLACK BOX
Using the professional video equipment, GV-BB100 can combine x-ray image, specific package and its owner into one system, to help operators review and analysis after crisis. With this extended function, the operators can quickly target the potential suspects. This system is not only user friendly but also has the remarkable effects which win the warm praise from the public security police officers. GV-BB100 is an international advanced product and an innovation in the security industry.


INSTALLATION DATA
Size 3398 mm (L) x 1316 mm (W) x 1804 mm (H)
Weight
1200 KG
Working Temperature / Humidity
0℃~ + 45℃/ 10%~ 95% (non-condensing)
Storage Temperature / Humidity
- 40℃~ + 60℃/ 10%~ 95%(non-condensing)
Power Supply
AC 220 V(+10%~-15%) 50±3 (Hz)
Power consumption About 0.50 (KVA)
