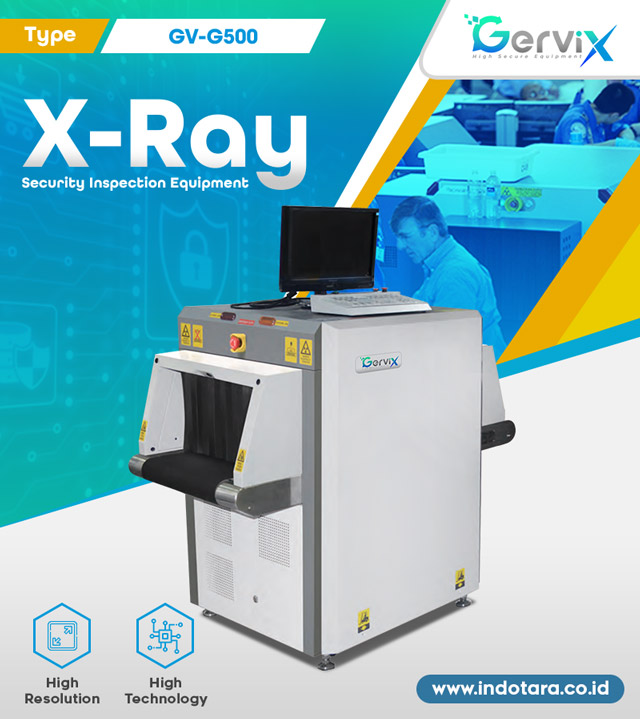

Jual X-Ray Security Inspection Equipment, Metal Detector, Explosive Detector, Mobile X-Ray Equipment - GV-G500 was specially designed and produced for the manufactures such as Shoes & hats factory, garment factory, leather factory and so on. GV-G500 can set up the accounts and the administrative permissions base on the customers’ needs. Its high conveyor speed (0.3m/s) and unique image scrolling displays technique allows the operators to have a complete understanding about the products and rule out the defective products quickly and precisely.
|
|
GENERAL INDEX |
||
Scanning direction | : | Bidirectional scanning |
Detection accuracy | : | Can found metal ball which was 1.0mm diameter |
Tunnel size | : | 505 mm (W) x 305 mm (H) |
Conveyor speed | : | 0.2m/s (about 1,400 pieces per hour) or 0.3m/s( about 2,100 pieces per hour) choose one of these two mode. |
Image Resolution |
: | 19’’LED (Single Display) |
INSTALLATION PARAMETERS |
||
Surface dimension | : | 1455 mm (L) x 800 mm (W) x 1213 mm (H) |
Weight | : | 375 KG |
Working Temperature / Humidity |
: | 0℃~ + 45℃/ 10%~ 95% (non-condensing) |
Storage Temperature / Humidity | : | - 40℃~ + 60℃/ 10%~ 95%(non-condensing) |
PowerSupply | : | AC 220 V(+10%~-15%) 50±3 (Hz) |
Power consumption | : | About 0.37 (KVA) |
IMAGE PROCESSING SYSTEM |
||
Display | : | Pseudo-color and Black & White |
Processing Function | : | F1/F2/F3 self-definition combination, edge enhancement, negative, partial enhancement, gray scale scan. |
Saves Capacity & Pull back |
: | JPG format image’s real time storage and infinite review |
Resolution | : | 1440 × 900 |
Processing & Gray Scale | : | 24Bit real-time processing/8192 |
Enlargement | : | Up to 64X dynamic continuous zoom & panning |
X-RAY SECURITY |
||
Leakage | : | < 1µGy/h (5cm distance from outer), According to the national and international Safety standard |
Film Saftey | : | According to the ISO1600 (33DIN) High speed standard |
OTHER FUNCTIONS |
||
System functions | : | User rights management, Power-on self-diagnosis, detection count, ultra-thin scanning, one key shutdown, high-density area alarm, etc. |
Optional functions | : | Objects’ image associated storing with its video. |
Optional accessories | : | Printer, label printer, roller table, EI-BB100 Black box System, hard disk burner, printer helf. |
X-RAY GENERATOR |
||
Anode Voltage | : | Cooling & Running CycleCooling & Running Cycle |
Beam Direction | : | From bottom |
Cooling & Running Cycle | : | Sealed oil cooling & 100% |
WARRANTY |
||
Warranty |
: | 2 Years |
