Jual Hand Held Fiber Laser Cleaning Machine

Jual Hand Held Fiber Laser Cleaning Machine Dengan Kualitas Terbaik  - Hand-held laser cleaning machine uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes the surface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. crafting process. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.
Hot application include:
Derusting the metal surface; Surface paint removal treatment; Surface resin, oil stains, stains, and dirt cleaning; Surface plating and coating removal; Pretreatment of welding surface/spraying surface; Removal of dust and attachments on the surface of the stone statue; Clean up the residue of rubber mold.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relics restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.

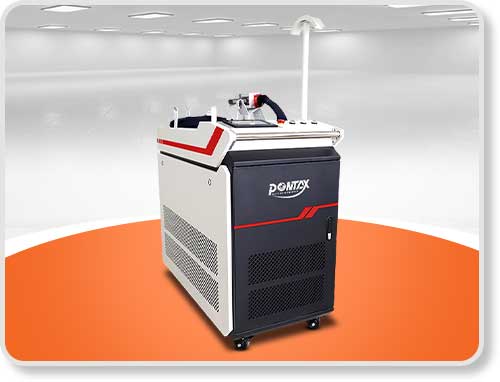

Pontax Heavy Duty Handheld Rust Cleaning Laser Machine PXCL-HC1000 IG
Product Specification
Best Price : Rp 210,499,390 / Unit
Promo Price : Rp 151,559,561 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DCE-14999
PONTAX Heavy Duty Rust Cleaning Laser Machine
• Model : PXCL-HC1000
• Operation Method : Handheld
• Laser Power : 1000W
• Out Method : Continous Wave
• Ranging Function : 0 - 1000mm
• Operationg Mode : Straight line mode
• Light Passing Rate : > 98%
• Laser Power Adjustment : 10% - 100%
• Scan Width : 0 - 300mm
• Scanning Frequency : Not less than 300Hz
• Max. Scanning Line Speed : Max. 20m/s
• Screen : Cabinet Standard 7" + Cleaning Head Std 2.8"
• Cable length : 10M
• Warranty : Electrical 12 Months
+ Heavy Duty Polyurethane Coating by JOTUN, Norway
+ Electrical Control Panel by Schneider, France
+ Smart Micro Controller by Infineon, Germany
+ Ultra Precise Laser Modul by Lasertechnik, Germany
+ Laser Optics Module by Sill Optics GmbH, Germany
+ Safe design with international quality
+ Moveable with wheel for any situation
+ Easy maintenance & low cost
+ Green Environmental Protection
+ Non contact cleaning
+ Does not damage the surface of material
+ Practical and high efficiency
+ Completed with Touch Screen Panel & Button Control
+ Easy Operation & No Pollution
Get your quotation less than 1 minute now!!


Content Dual Axis Single
Supply voltage 1000W and 1500W is Single-phase 220V± 10%, 50/60Hz AC
2000W is Three-phase 380V± 10%, 50/60Hz AC
Out Method (CW) Continuous Wave
Working temperature -10℃~40℃
Working environment humidity ≤80%
Able to withstand laser average power ≤2000W ≤2000W
Language Chinese, Chinese Traditional, English, Russian, Japanese, Spanish,
Korean, German, French
Chinese, English, Korean, Japanese,
Russian, Traditional, French, Spanish, Israel
Operating mode 7 types: Straight line, rectangle, sine, double helix,
circle, free mode, ring
1 type: Straight line mode
Ranging function The setting range is 0-1000mm none
Temperature measurement The measured temperature is the internal temperature of the cleaning head,
the upper limit of the temperature can be set, and the default is 60° C
Light passing rate ≥98%
Laser power adjustment 10%-100% continuous gradient adjustable
Laser frequency adjustment 1kHz-20kHz continuous gradual adjustment
(support customization)
Focal length 650mm 400mm / 500mm(custom made,
Two weeks)
Washing head weight <1.2Kg(Without QBH)
Scan width 0-300mm 0-300mm
Scanning frequency Not less than 300Hz
Max. scanning line speed Max. 20m/s


1000W 5.2KW
1500W 6.9KW
2000W 9.0KW


Compare items Laser cleaning Chemical cleaning Mechanical grinding Dry ice cleaning Ultrasonic cleaning Blast cleaning
Cleaning method Contactless Contact Contactless Contactless Contact dip Contact
Workpiece damage No damage Damaged Damage No damaged No damage Damaged
Cleaning efficiency High Low Low Medium Medium Medium
Consumables Just power up Chemical cleaning agent Sandpaper, Grinding wheel Dry ice Special cleaning agent Special sand
Cleaning effect Very talented, High cleanliness Generally Uneven Generally, Uneven Excellent, Uneven Excellent small clean area Generally, Uneven
Precise cleaning Precise and controllable High accuracy Can not control poor accuracy Can not control Poor benchmark Can not control poor accuracy Cannot be specified, Range  cleaning Cannot clean dead corners
Safety / environmental protection Safe and pollution-free Seriously pollute the environment Polluted environment No pollution No poluttion Polluted environment
Manual operation Handheld or automated The process is complicated, High personnel requirements Time consuming, Protective measures are required Handheld or automated Manually add consumables Labor-intensive
Cost input High initial cost low maintenance cost Medium initial cost, High cost of consumables Medium initial cost, High artificial consumables Medium initial cost, High cost of consumables Low initial cost, Medium cost of consumables High initial cost, High cost of consumables
  • Jual Hand Held Fiber Laser Cleaning Machine

    Masa pakai Fiber laser lebih dari 10w/jam, kinerja stabil, fiber fleksibel 5-20m, dapat dioperasikan luar ruangan, dan dilengkapi dengan lapisan pelindung yang kuat.

  • Jual Hand Held Fiber Laser Cleaning Machine

    The hand-held galvanometer cleaning memiliki keunggulan light spot yang dapat disesuaikan, sangat ringan, dan desain yang ergonomic,

  • Jual Hand Held Fiber Laser Cleaning Machine

    Friendly interface; sistem status terus berjalan, memantau pengoperasian laser, pendingin, dan panel kontrol; pada saat bersamaan,

  • Jual Hand Held Fiber Laser Cleaning Machine

    Dilengkapi dengan fitur sembilan bahasa: Cina, Inggris, Korea, Jepang, Rusia, Tradisional, Prancis, Spanyol, dan Israel; untuk memenuhi kebutuhan pelanggan.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Operasi intuitif dan nyaman, memiliki pemahaman yang jelas tentang situasi produksi dan dapat menanggapi keadaan darurat.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Memiliki desain integrasi elektromekanis untuk memastikan struktur yang compact dan penggerak motor yang mudah  dioperasikan.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Pontax Fiber Laser Cleaning Machine dilengkapi dengan HanLI / S&A water chiller untuk menjaga temperatur mesin dalam kondisi yang ideal.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Pontax Fiber Laser Cleaning Machine memiliki desain yang compact, material yang kokoh, anti karat, kabinet dan pintu samping terintegrasi

  • Jual Hand Held Fiber Laser Cleaning Machine

    Pontax Fiber Laser Cleaning Machine  menggunakan sistem komputer yang telah terbentuk dengan baik hingga menghasilkan hasil yang sesuai dengan cepat dan presisi.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Dengan standar mutu internasional membuktikan eksistensi sebagai Laser cleaning machine terbaik sepanjang masa. Tidak perlu diragukan lagi Pontax merupakan pilihan terbaik.

  • Jual Gantry Machine Center, Harga Gantry Machine Center, Gantry Machine Center Dengan Kualitas Terbaik

    Pontax Laser cleaning Machine digunakan dalam industri konversi, yaitu konversi mesin dalam jumlah besar mampu diberbagai layanan bengkel, pabrik, dll.

  • Jual Hand Held Fiber Laser Cleaning Machine

    Pontax Hand Held Fiber Laser Cleaning Machine memberikan garansi selama 1 tahun.


Pontax memiliki pengalaman dalam bidang Industri Manufaktur untuk menghasilkan komponen dalam jumlah besar,
kualitas terjamin dan teknologi berkualitas tinggi untuk solusi usaha dan kebutuhan anda.
