PONTAX Grinding Equipment - Pontax grinding equipment is designed to cater to a wide range of industrial applications, from metalworking and automotive manufacturing to aerospace and defense. Our state-of-the-art machines are built to handle even the toughest materials and provide consistent, high-quality results every time.
Our grinding equipment is equipped with advanced features such as programmable controls, automatic tool changers, and integrated cooling systems, allowing for efficient and precise grinding operations. We also offer a range of customization options to meet your specific needs and requirements. |
|
| Size of Grinding Wheel | : | Φ585 x Φ195 x 75 mm |
| Diameter of Workpieces | : | Φ12 - φ120 (Thickness 0.8 - 40) mm |
| Power of Wheelhead Motors | : | 22Kw x2 |
| Dimension | : | 2700 x 2620 x 2650 mm |
| Size of Grinding Wheel | : | Φ750 x Φ195 x 75 mm |
| Diameter of Workpieces | : | Φ50 - Φ180 (Thickness 1.2 - 60) mm |
| Power of Wheelhead Motors | : | 30Kw x2 |
| Dimension | : | 2840 x 3140 x 2880 mm |
| Size of Grinding Wheel | : | Φ440 x 65 x Φ350 mm |
| Diameter of Workpieces | : | Φ320 (Thickness ≥0.4) mm |
| Power of Wheelhead Motors | : | 15Kw |
| Dimension | : | 2650 x 1500 x 2650 mm |
| Upper and Lower Plate Size | : | Φ1070 x Φ495 x 45 mm |
| Workpieces Roughness | : | ≤Ra0.15 (Lapped) ≤Ra0.15 (Polished) |
| Motor Plate Power | : | 15Kw (lower) 11Kw (Upper) |
| Dimension | : | 2500 x 2000 x 3000 mm |
| Lapping Plate Size | : | Φ1140 x 375 x 45 |
| Workpieces Roughness | : | ≤Ra0.15 (Lapped) ≤Ra0.125 (Polished) |
| Planetary Wheel Specs | : | P=15.875 Z=84 |
| Max Workpiece Size | : | 360 (Rectangle diagonal 36mm) |
| Lapping Plate Size | : | Φ952 x 35 |
| Workpieces Roughness | : | ≤Ra0.15 (Lapped) ≤Ra0.125 (Polished) |
| Plate Motor Powers | : | 11Kw, Rated Speed: 1450rpm |
| Max Workpiece Size | : | Φ360 |
| Upper and Lower Plate Size | : | Φ1135 x Φ400 x 35 mm |
| Workpiece Plate Rotation Speed | : | 2-45 ± 2rpm |
| Polishing Plate Rotation Speed | : | 2-90 ± 2rpm |
| Overall Dimension | : | 1900 x x1500 x 2800 mm |
| Upper and Lower Plate Size | : | 3 x Φ920(Upper OD) Φ12 x 420(Lower OD) |
| Workpieces Thickness | : | 0.5 - Φ360 mm |
| Lower Plate Rotation/Revolution Speed | : | 10-55rpm/5-28rpm (Stepless) |
| Overall Dimension | : | 2600 x 2600 x 2700 mm |
| Polishing Head Size | : | Φ310 x 245 mm |
| Workpieces Size | : | 60 - 200 mm |
| Revolving Motor Power | : | 1.5Kw (Workpieces) 2.9Kw (Polishing head) |
| Overall Dimension | : | 1720 x 1120 x 2125 mm |
| Size Range of Workpiece | : | 1 - 8" |
| Polishing Wheel Diameter | : | Φ50 - Φ100 mm |
| X/Y/Z axis Stroke | : | 400/350/380 mm |
| Overall Dimension | : | 2050 x 2250 x 2340 mm |

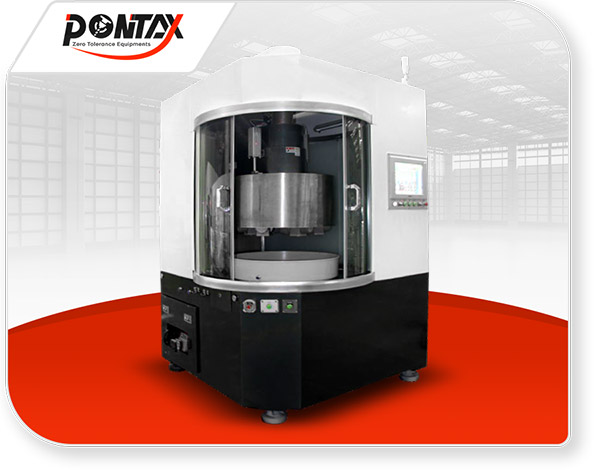

| Model | : | PX2M8169 |
| Type | : | 3D Magnetic Polishing Machine |
| Flats and Joint Roughness Surface | : | ≤ 0.001μm |
| Surface Glossiness | : | 110 Gu |
| Worktable Size & Load | : | 500 x 400 mm & 150 kg |
| Working Area XYZ | : | 500 x 400 x 200 mm |
| Machine Power | : | 3-Phase AC380V/50Hz (12Kw Total) |
| Weight | : | 4000Kg |
