Banner Parent Product Podem Hoist Crane

The ordinary electric hoist cannot satisfy the requirements on cleanliness of the special workshop in high precision electronics industry, food industry, aviation industry and other industriesdue to the production of a large number of tiny particles in operation. Verkronn is active in research and development of safe, clean, compact, reliable and efficient material handling solution.

After many years of hard work and tests, Verkronn has developed a series pf VR electric hoist that suitable for clean space environment. VR electric hoist for clean room is applicable for various clean workshop environments on biotechnology, medical apparatus and instruments, pharmaceutical production, food production, semiconductor manufacturing, etc. Our VR series hoist, with hoisting capacity from 50 Kilos to 32 tons, is applicable to environment of cleanliness grade 1000, including wire rope hoist, chain hoist, belt-type hoist, and others of different forms and structures.

In accordance with requirements of different industries and cleanliness, Verkronn can provide you with the optimum solutions of materials handling depending on research and development capabilities and rich industry experience.

The body of our electric hoist for clean room is made of stainless steel with completely sealed driving structure. The surface of VR electric hoist for clean room enjoy antistatic and anti-corrosion treatment, with hih permeability, adhesion, chemical resistance, stability and non-pollution. With this clean hoisting equipment, customers can safely conduct work piece hoisting operation in product line in clean room, equipment maintenance and other operations needing hoisting machinery, Our products are clean and reliable to ensure that your work plan can be carried out on schedule.


Banner Parent Product Podem Hoist Crane


High-class and high-quality components are the basis for excellent quality of products. The requirements on components selection of VR electric hoist for clean room are much higher than other electric hoist products of Verkronn. Verkronn takes each component seriously from hoisting motors to reducers, from reels to steel with ropes, from safe and reliable electrical components to the best structure and quality of the complete machine.

Compact Structure

Based on VR design concept, Verkronn VR electric hoist for clean room provides with better material handling soltions with features such as lightweight, modularity and compact structure. For the unique structure in the clean room, the parts are skillfully designed to make the crane lift the load of same height from different irection to provide the most ideal work space for crane operators and make the scope of the crane hoisting and transporting the goods cover every corner of the clean workshop.

Precise Positioning

We know deeply that our products are used to lift beautiful and expensive production components, so that stable and precise operation protects the components from vibration and fluctuation, sophisticated drive technology ensures the comprehensive control to the hoisted components, low torque design and high strength structure ensure the excellent performance of our equipment.

Clean & Eco-Friendly

Based on the strict requirements on dust-free space, Verkronn selects the components not easy to produce particles, and conduct closed design for the moving components that may produce small particle, to avois leakage of particles and pollution for other work piece and products in the workshop. Meanwhile, the sealed and maintenance-free design is adopted for bearing, rolls and other parts those need to be lubricated and waterproofing measures are taken to ensure no grease disrt dripping.
In addition, the driving equipment with excellent performance is in super silent operation to make the operation environment much more comfortable, which reflects the people-oriented design concept.

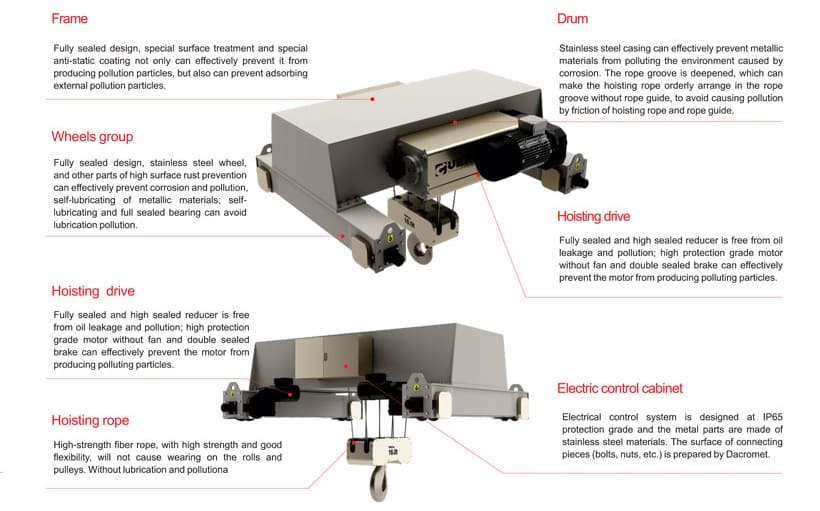

Our High-end products are designed based
based on the customers most stricttechnical requirements for clean room.

Banner Parent Product Podem Hoist Crane

The applicable grade and standard of electric hoist for clean room
The grade standard based on the maximum concentration limits of the particles those the diameter is great than or equal to the considered particles in the unit volume air of the clean room. Air cleanliness : The content of dust in the clean air (namely, dust concentration). If the dust concentration is high, the cleanliness will be low, and vice versa.

International Standard ISO 14644-1
ISO Grade (N) Great than or equal to maximum acceptable concentration (particle/cubic meter) of suspended particles with the particle size listed in the Table.
0.1 um 0.2 um 0.3 um 0.5 um 1 um 5 um
1 10 2
2 100 24 10 4
3 1000 237 102 35 8
4 10000 2370 1020 352 83
5 100000 23700 10200 3520 832 29
6 1000000 237000 102000 35200 8320 293
7 352000 83200 2930
8 3520000 832000 29300
9 35200000 8320000 293000

Banner Parent Product Podem Hoist Crane


Load Capacity (Kg) FEM ISO Height Speed Trolley Speed H Size C Size
2000 2m M5 6/9/12/18 0.8/5.0 5-20 230 350
3200 2m M5 6/9/12/18 0.8/5.0 5-20 230 350
5000 2m M5 6/9/12/18 0.8/5.0 5-20 230 350
5000 2m M5 6/9/12/18 0.8/5.0 5-20 230 350
8000 3m M6 6/9/12/18 0.8/5.0 5-20 540 360
10000 1Am M4 6/9/12/18 1.0/6.3 5-20 540 360
10000 2m M5 6/9/12/18 0.8/5.0 5-20 540 360
10000 3m M6 6/9/12/18 0.66/4.0 5-20 540 360
12500 1Am M4 6/9/12/18 0.8/5.0 5-20 540 420
12500 1Am M4 6/9/12/18 1.0/6.3 5-20 540 420
12500 2m M5 6/9/12/18 0.6/4.0 5-20 540 420
16000 2m M5 6/9/12/18 0.66/4.0 5-20 640 480
20000 1Am M4 6/9/12/18 0.66/4.0 5-20 640 480
20000 2m M5 6/9/12/18 0.53/3.4 5-20 640 480
20000 3m M6 6/9/12/18 1.0/4.2 5-20 790 620
25000 1Am M4 6/9/12/18 0.53/3.4 5-20 790 620
25000 2m M5 6/9/12/18 0.8/3.3 5-20 790 620
25000 2m M5 6/9/12/18 1.0/4.2 5-20 790 620
32000 2m M5 6/9/12/18 0.8/3.3 5-20 790 620
32000 2m M5 6/9/12/18 0-4.9 5-20 895 980
40000 1Am M4 6/9/12/18 0-4.9 5-20 895 980
50000 2m M5 6/9/12/18 0-3.2 5-20 895 980
50000 1Am M4 6/9/12/18 0-4.0 5-20 895 980
63000 1Am M4 6/9/12/18 0-3.2 5-20 975 1100
63000 2m M5 6/9/12/18 0-2.4 5-20 975 1100
80000 1Bm M3 6/9/12/18 0-3.8 5-20 1025 1525
100000 1Bm M3 6/9/12/18 0-2.1 5-20 1025 1525
For more options, please contact Verkronn local distributor

Electric Chain Hoists
VC Series Features

Standarized and humanized design can improve operating performance as well as can significantly reduce maintenance costs. The main parts of VC electric chain hoist are adopted maintenance-free design, and it is no need to be replaced, but only routine maintenance, when using according to safety specification.

Lifting Motor
Light weight and small volume of high performance motor. Roating speed can be up to 3000 r.p.m. High starting torque and high energy efficiency.
Overload Clutch
Integrated in the drive gear shaft. Overload protection function can keep torque up to 1.4 times of safe load. Maintenance free design, adjustable overload torque.
Reduction Gears
Hardened gear surface processing, heat treatment after gear grinding, Grade 7 precision of gears or even higher. Perfect meshing and efficient transmission.
Lifting brake
Brake disc with maintenance-free design, can automatically adjust brake clearance, with capacity to operate one million times in normal use.
Electrical Connector
Connectors with alumunium standard prevent mis connection and bobble. 10-core connector can make it easier for control and power supply.
Chain Mechanism
Leading chain wheel with five sockets design, and surface hardening treatment. Smoother and quieter leading chain. Itcan meet the harsh working environment.
Die-casting high-strength alloy is integrally molded, with corrosion resistance and good sealing. Special suspension design, to avoid box from load force.
Carburizing chain of special high strength alloy steel. Surface with galvanization treatment. Abrasion resistant and corrosion resistant. High safety factor.
