ARAKI Screw Compressor Mini Portable Integrated GTR-7.5PMT 10 Bar LD Variable Speed Drive

Product Specification

SKU - DCE-39880

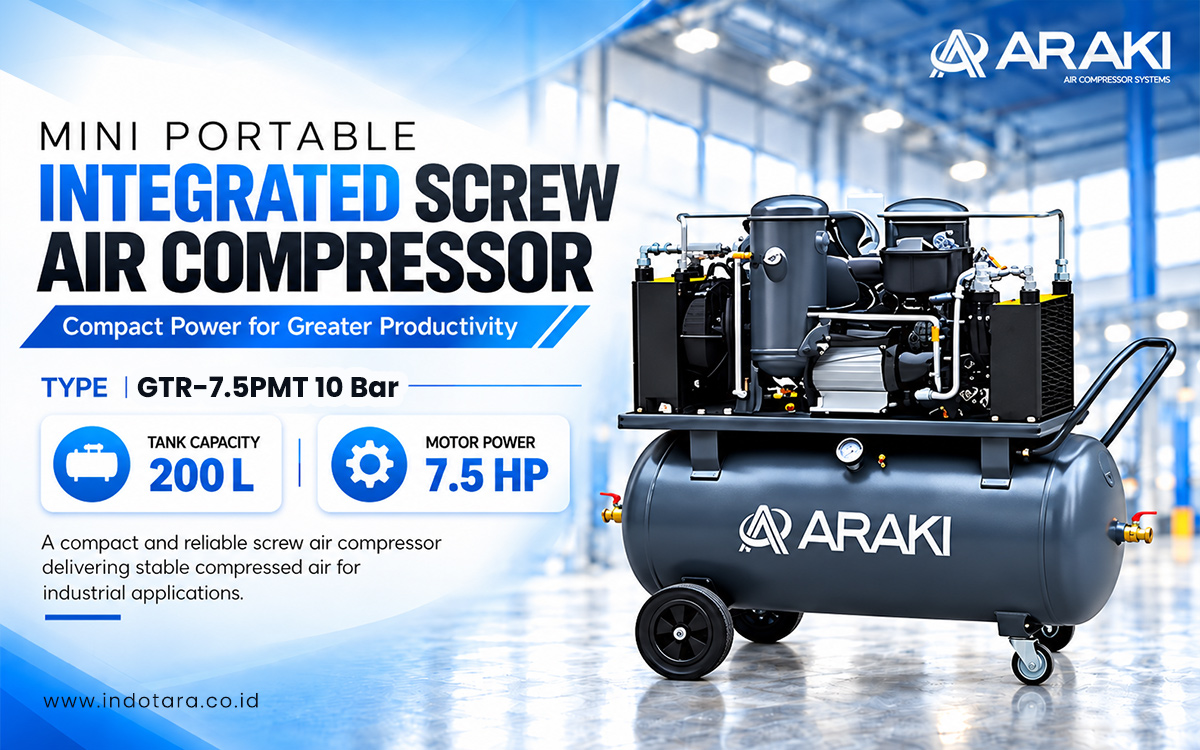

Araki Mini Portable Integrated Screw Compressor
• Model : GTR-7.5PMT
• Voltage : 380V 3Ph 50Hz
• Working Pressure : 10 Bar
• Air Capacity : 0.6 m³/min
• Motor Power : 5.5 kW / 7.5 HP
• Running Method : Variable Speed
• Air Tank Capacity : 200 L
• Overall Dimensions : 1450 × 510 × 1115 mm
• Air-End Type: Single-Stage Screw Air-End
• Control System: Intelligent Control Screen
• Filtration: Air Filter + Oil-Air Separator + Oil Filter
• Mobility: Portable Wheel-Mounted Design
• Warranty : Mechanical 3 Years , Electrical 1 Years

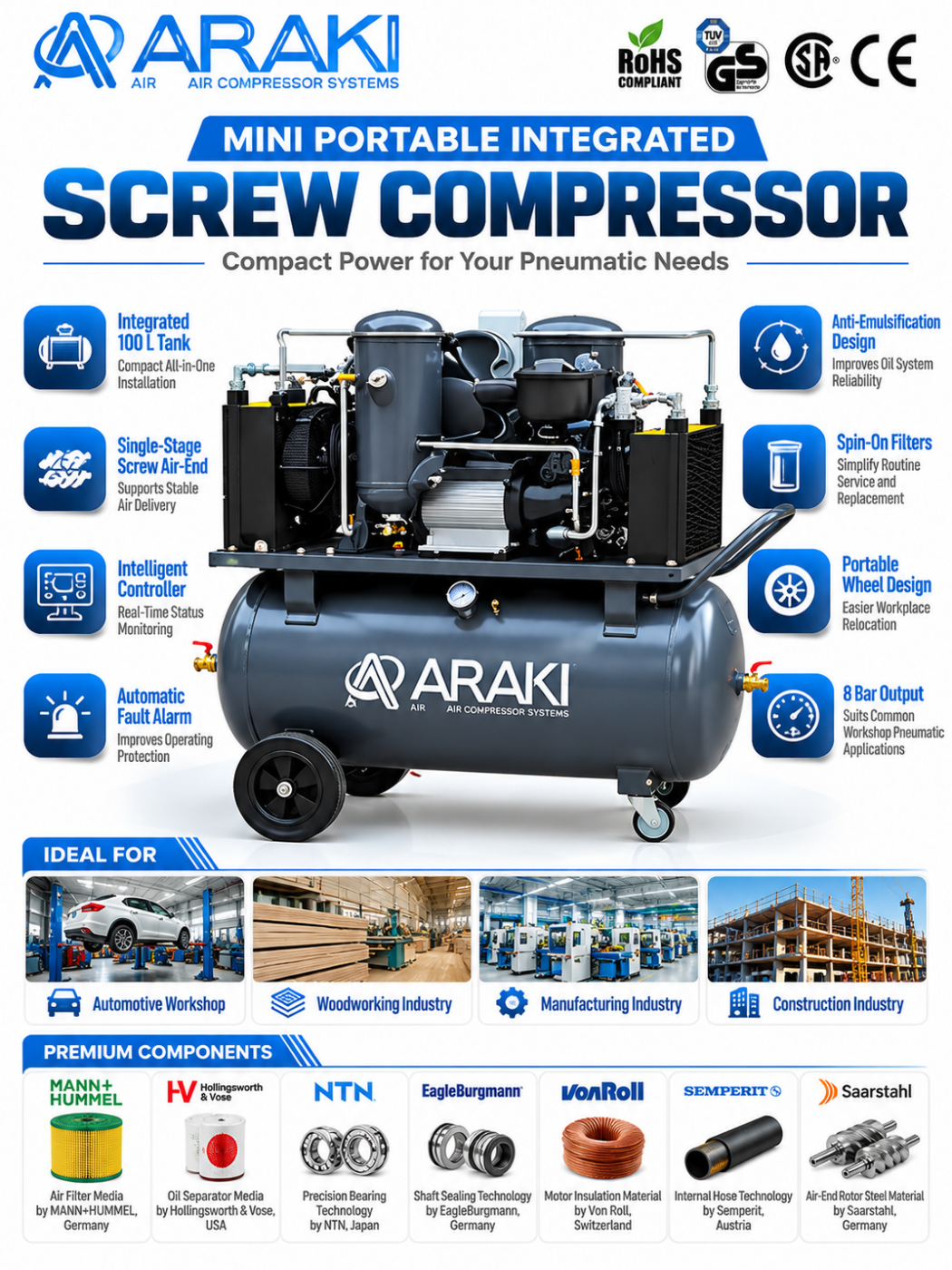

Features
+ Air filter media technology by MANNHUMMEL, Germany.
+ Oil separator media by Hollingsworth & Vose, USA.
+ Precision bearing technology by NTN, Japan.
+ Shaft sealing technology by EagleBurgmann, Germany.
+ Motor insulation material by Von Roll, Switzerland.
+ Internal hose technology by Semperit, Austria.
+ Air-end rotor steel material by Saarstahl, Germany.
+ Integrated 100 L tank provides compact all-in-one installation.
+ Single-stage screw air-end supports stable air delivery.
+ Intelligent controller enables real-time status monitoring.
+ Automatic fault alarm helps improve operating protection.
+ Anti-emulsification design improves oil system reliability.
+ Spin-on filters simplify routine service and replacement.
+ Portable wheel design allows easier workplace relocation.
+ 10 bar output suits common workshop pneumatic applications.
