Jual Radial Drilling Machine, Harga Radial Drilling Machine, Radial Drilling Machine Murah

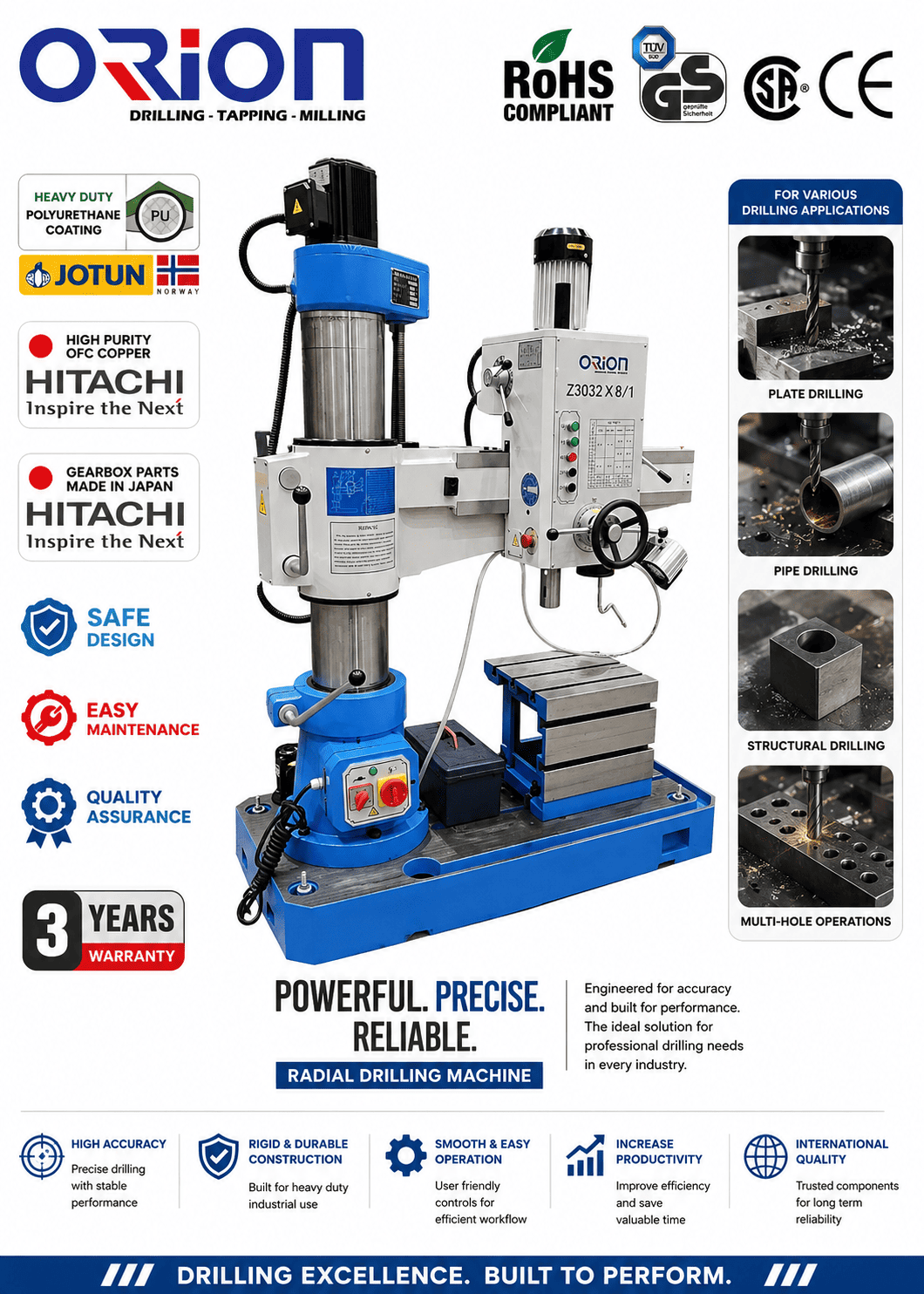

Jual Radial Drilling Machine, Harga Radial Drilling Machine, Radial Drilling Machine Murah - Orion radial drilling machine is a universal machine tool with wide application, suitable for processing of medium and small parts in machinery manufacturing, such as drilling, flaring, reaming, reaming face and tapping. In the case of technological equipment, it can be used for boring. The operation time limit is not more than eight times each minute in tapping. And its universalization of radial drilling machine is higher.
Z3032X8/1 Z3040X8/1
Jual Radial Drilling Machine, Harga Radial Drilling Machine, Radial Drilling Machine Murah

Best Price : Call Sales
Model : Z3032X81 Z3040X8/1
Max. drilling capacity
: 32/40 mm
Distance spindle axis to column surface generating line
: 300~820 mm
Diameter of column
: 200 mm
Spindle taper
: MT4
Spindlr travel
: 240 mm
Spindle speeds range
: 75~1220 r/min
Spindle speeds series
: 6
Range of spindle feeds
: 0.1~0.25 mm/r
Spindle feeds
: 3
Distance spindle nose to working surface of base
: 120~860 mm
Dimension of worktable
: 400 x 400 x 350 mm
Dimension of base
: 1370 x 700 x 160 mm
Overall size
: 1407 x 720 x 1885 mm
Power main motor
: 1.5 kW
G.W./N.W
: 1230/1140 kg
Packing dimension
: 155x77x210 cm
Warranty : 3 Years (Mechanical) & 1 Years (Electrical)
  • With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.
  • The radial arm can rotate and can tilted 45 , it reliable and easy job can be done.
  • Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
  • The machine with small appearance and much function, the machine are widely used for drilling, counterboring, reaming, tapping etc.

Price Exclude PPn 11%
ORION MACHINING SYSTEM :
HIGH QUALITY, HEAVY DUTY, HIGHER OUTPUT POWER, EFFICIENCY,
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.
With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.

RADIAL DRILLING MACHINE SPECIAL FEATURES :
  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine with readout digital control yang berpusat pada headstock. ketika menjepit dan mengubah kecepatan spindle ditenagai oleh tenaga hidrolik,

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine meningkatkan modulus gir pada mesin, agar hasil pengeboran lubang lebih cepat, lebih minim getaran  dan hasil yang lebih maksimal.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Bagian utama dibuat oleh pusat mesin yang mengimpor bentuk KIA dengan presisi dan efisiensi tinggi, memastikan kehandalan dan kualitas tinggi.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Bagian poros dibuat oleh material permukaan baja berkualitas tinggi khusus  dibuat oleh peralatan kelas satu, kekuatan tinggi dan daya tahan lebih lama.

  • jual-electric-motor-fujita-electric-motor-electric-motor

    Radial drilling machine dilengkapi dengan akurasi high positioning dan speed of motion, yang dapat diterapkan dalam pemrosesan komponen dengan multi threads.

  • jual-electric-motor-fujita-electric-motor-electric-motor

    Radial drilling machine dilengkapi dengan panel smart opration  untuk memudahkan operator melakukan pekerjaan dan melihat seberapa cepat pengeboran mesin.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine memiliki desain integrasi elektromekanis untuk memastikan struktur yang compact dan penggerak motor yang mudah  dioperasikan.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Dengan standar mutu internasional membuktikan eksistensi sebagai drilling machine terbaik sepanjang masa. Tidak perlu diragukan lagi Orion merupakan pilihan terbaik.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Digunakan dalam industri konversi, yaitu konversi mesin bubut dalam jumlah besar mampu diberbagai layanan bengkel, pabrik, dll.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine tidak menggunakan terlalu banyak daya listrik, yang tentunya akan menghemat biaya pengeluaran anda.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine sangat mudah diaplikasikan sehingga sangat cocok untuk keperluan bisnis anda.

  • Jual Orion Drilling Machine, Light Bench Drill, Agen Drilling Machine

    Radial drilling machine machining system memberikan garansi selama satu tahun

With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.



HATI-HATI GUNAKAN SELALU MACHINING SYSTEM BERKUALITAS TERBAIK
  ORION machining system memiliki pengalaman meningkat selama bertahun-tahun dengan kualitas terbaik.
 meningkatkan teknologi seperti spindle berkecepatan tinggi dan kemampuan CNC canggih.
