BITLER Bench Lathe - Dengan pengalaman hampir 20 tahun dalam dunia manufaktur kami telah berhasil mengeluarkan produk-produk berkualitas terbaik dengan teknologi canggih, Bitler Heavy Duty Lathe Machine adalah produk yang sangat spesial, dibuat menggunakan material dan teknologi terbaru yang menjadikan produk Bitler Lathe Machine bisa menjadi pilihan utama untuk membantu kelangsungan opersional bisnis anda, Desain yang kokoh, memberikan kesan Heavy Duty untuk setiap produk yang kami hasilkan, dapatkan segera produk Bitler Lathe Machine Hanya di PT. Indotara Persada.

PT. Indotara persada didukung oleh teknisi yang handal, garansi yang panjang, design produk yang elegan, harga yang ekonomis, spare part tersedia dan jaminan after sales terbaik. Produk yang kami tawarkan bisa menjadi pilihan terbaik dan mendukung kemajuan bisnis Anda.

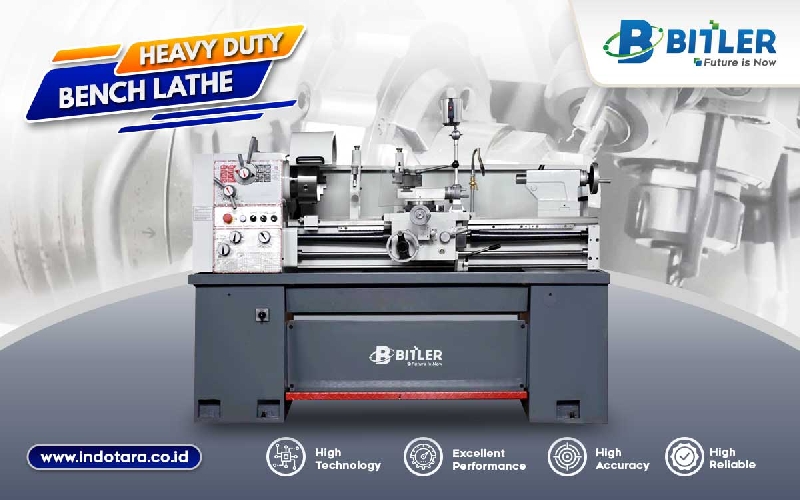

Bitler Bench Lathe Machine BWMQ6240Fx1000 WM
Product Specification
Best Price : Rp 118,747,161 / Unit
Promo Price : Rp 85,497,956 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DCE-17321
BITLER Bench Lathe Machine
Model : BWMQ6240Fx1000
Swing over bed : 400mm
Swing over cross slide : 230mm
Max swing in gap : 560mm
Distance between centers : 1000mm
Width of Bed : 360mm
Spindle bore : 52mm
Taper of spindle bore : MT.6
Spindle speeds : 16 - 1600rpm
Metric threads : 0.25 - 7mm
Inch threads : 5 - 144inch
Tailstock quill taper : MT.4
Motor power : 4kw
Net Weight : 1450KG
Packing dimension (mm) : 2450*1150*1650
Warranty : 3 years mechanical & 1 year electrical
Feature :
- Heavy duty polyurethane coating by Jotun, Norway
- Bearing by NSK, Japan
- Ultra Precise Screwed Rod By HAGENKÖTTER GMBH, Germany
- Gearbox Parts by Hitachi Alloy, Japan
- Safe design with international quality
- High accuracy & precision
- Completed with Steady Rest
- Heavy duty lathe machine
- Easy maintenance and low noise
- Simple structure and less failure
- Guaranteed Spareparts Availability
- Continous working duty cycle
REQUEST QUOTE
Get your quotation less than 1 minute now!!

SPECIFICATION
MODEL
BWM Q6240Fx1000
Max. swing over bed 400mm
Max. swing over cross slide 264mm
Max. swing over gap 550mm
Distance between centers 1000mm
Bed width 206mm
Spinde bore and nose ɸ51mm/D5
Spindle taper MT6
Speeds number 16 steps
Speeds range 45-180Orpm
Max. section of tool 16x16mm
Threads inch pitches 4-56TPI / 28 kinds(Metric lathe),4-112TPI / 40 kinds (Inch lathe)
Threads metric pitches 0.4-7mm 128 kinds(Metric lathe),0.45-7.5mm 122 kinds(Inch lathe)
Longitudinal feeds 0.043-0.653mm/rev (Metric lathe),0.0012-0.0237iWrev (Inch lathe)
Taistock quill taper and travel MT4/100mm
Tailstock quill dia. 45mm
Main motor power 1.5/2.4kw
Cross slide travel 150mm
Compound rest travel 90mm
N.W/G.W 700/800kgs
Packing size 1950x750x1500mm

BITLER BENCH LATHE MACHINE PRODUCT:
HIGH QUALITY, HEAVY DUTY, HIGH PRECISION, RELIABLE MACHINERY
PROVIDE THE BEST WARRANTY IN THE INDUSTRY.

BITLER LATHE SPECIAL FEATURES :

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a body made of high quality and anti-rust materials.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is very stable and easily adaptable to various environmental conditions.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine can produce optimal results quickly and is also very precise.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine at an affordable price and the quality of the machine is very strong and also saves electricity.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses high technology for maximum and fast results.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine is a reliable and highly efficient lathe.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has high performance and is very accurate, powerful and fast.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses low electrical power so it is very energy efficient.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine uses a high-tech system with a high security system.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine is a machine that is very easy to operate with long durability, with low electrical power.

  • Jual Bitler Lathe Machine

    The Bitler Lathe Machine has easy machine maintenance and is easy to clean.

  • Jual Bitler Lathe Machine

    Bitler Lathe Machine has a machine that is able to work with long durability, strength and easy maintenance.

With wide range of  speed, with manual, power feeds. The feed of machines are very easily engaged and disengaged at anytime.


HATI-HATI GUNAKAN SELALU BITLER LATHE MACHINE BERKUALITAS TERBAIK
  Bitler Lathe Machine  memiliki pengalaman meningkat selama bertahun-tahun sehingga berkualitas terbaik.
 Meningkatkan teknologi berkualitas tinggi untuk solusi yang profesional.
