Foot Mounted Hoist is application for crane producers or for special trolley execution for special applications. Standard hoist includes: el. equipment; two speeds of lifting; all motors with brakes; load limiter; end switches; galvanized rope; hook.

The main Podem crane kits features are reliability, safety and attractive cost effectiveness intended to crane manufacturers or crane service providers. Podemcrane is clearly the biggest hoist manufacturer in Central and Eastern Europe and has remained one of the most progressive companies in the industry. We are designing reliable products reflecting our customers individual needs. We have experienced engineers who make sure our production is efficient and well controlled. Product testing and quality control remain of great importance. Our production factory spreads on a territory of 30.000 sq.m.

All our products meet the European Union health and safety requirements in compliance with Machinery Directive 2006/42/E

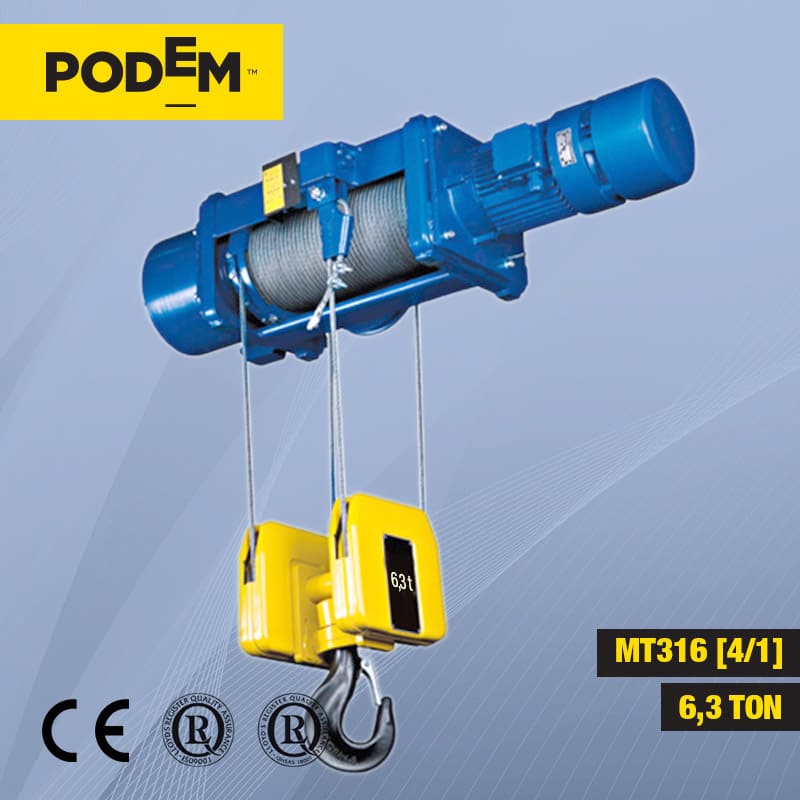

JUAL FOOT MOUNTED HOIST PODEM - MT316 [4/1]

Specification

Model			MT316
Rope Falls			4/1
Capacity (kg)	kg		6300
Groups	FEM		2 m
	ISO		M5
Lifting Speed	m/min	V1	4/1,3
		V2	6/2
Lifting Height	m	H0	-
		H1	7
		H2	10
		H3	13

Description

Foot Mounted Hoist

MT Series, 4 rope falls (reeving 4/1)

Spesifikasi Wire Rope Hoist Foot Mounted

Hoist Type	Capacity (Ton)	Rope (mm)	Hook Travel (m)	Fixed Dimension (mm)										Variable Dimension (mm)											Weight (kg)
Hoist Type	Capacity (Ton)	Rope (mm)	Hook Travel (m)	C	H	a	b	k	d	e	m	n	o	p	q	r	s	t	u (V1)	v (V1)	z (V1)	u (V2)	v (V2)	z (V2)	Weight (kg)
MT305	2	ø 7	7	500	321	105	190	50	469	27	45	48	84	520	132	25	200	218	376	220	150	376	220	150	150
	2	ø 7	10	500	321	105	190	50	469	27	45	48	84	700	222	69	200	218	376	220	150	376	220	150	160
	2	ø 7	13	500	321	105	190	50	469	27	45	48	84	885	314	115	200	218	376	220	150	376	220	150	180
MT308	3.2	ø 7	7	535	321	105	190	50	469	27	45	48	84	520	132	25	200	218	376	220	150	483	257	181	170
	3.2	ø 7	10	535	321	105	190	50	469	27	45	48	84	700	222	69	200	218	376	220	150	483	257	181	187
	3.2	ø 7	13	535	321	105	190	50	469	27	45	48	84	885	314	115	200	218	376	220	150	483	257	181	207
MT312	5	ø 10	7	600	321	105	190	50	469	21	48	56	110	570	137	19	246	292	483	257	181	483	257	181	225
	5	ø 10	10	600	321	105	190	50	469	21	48	56	110	775	240	72	246	292	483	257	181	483	257	181	255
	5	ø 10	13	600	321	105	190	50	469	21	48	56	110	975	340	122	246	292	483	257	181	483	257	181	285
MT316	6.3	ø 10	7	620	321	105	190	50	469	21	48	56	110	570	137	19	246	292	483	257	181	607	310	240	220
	6.3	ø 10	10	620	321	105	190	50	469	21	48	56	110	775	240	72	246	292	483	257	181	607	310	240	252
	6.3	ø 10	13	620	321	105	190	50	469	21	48	56	110	975	340	122	246	292	483	257	181	607	310	240	296
MT525	10	ø 12	7	675	378	133	212	53	544	17	60	61	133	590	133	15	266	360	616	310	251	661	310	251	480
	10	ø 12	10	675	378	133	212	53	544	17	60	61	133	795	236	67	266	360	616	310	251	661	310	251	510
	10	ø 12	13	675	378	133	212	53	544	17	60	61	133	995	336	117	266	360	616	310	251	661	310	251	540

Dimensions are for hoists with FEM 2m/ISO M5, for 3m/M6 see table MT2-3m.
All dimensions are referred to "Standard Products", for all other products please contact Podem for GA drawing.

Hoist Type	Capacity (kg)	Hook Position	7				10				20
Hoist Type	Capacity (kg)	Hook Position	R1	R2	R3	R4	R1	R2	R3	R4	R1	R2	R3	R4
MT305	2000	uep	838	669	274	219	908	726	203	163	951	759	161	129
MT305	2000	dep	609	487	503	401	666	531	446	357	700	559	412	329
MT308	3200	uep	1341	1071	438	350	1454	1161	325	260	1522	1215	257	206
MT308	3200	dep	975	779	804	642	1065	850	714	571	1120	894	659	527
MT312	5000	uep	2058	1644	722	576	2249	1796	531	424	2358	1883	422	337
MT312	5000	dep	1483	1184	1297	1036	1645	1315	1134	906	1738	1388	1042	832
MT316	6300	uep	2592	2071	910	727	2834	2263	669	534	2971	2372	532	425
MT316	6300	dep	1868	1492	1634	1306	2074	1657	1428	1141	2189	1749	1313	1049
MT525	10000	uep	4100	3154	1552	1194	4504	3465	1148	883	4735	3642	917	706
MT525	10000	dep	2970	2284	2683	2063	3303	2540	2350	1807	3491	2685	2161	1663

uep – Upper end position of the hook.
dep – Down end position of the hook.

Electric Wire Rope Hoists

Features

Podem’s wire rope hoist range provides solutions for cranes and replacement applications. There are two series M and MT from 0.8 to 50 t, covering the light, medium and heavy operation modes. A wide range of lifting speeds and lifting heights is available.

Lifting reducer

Planetary gearboxes (2 or 3 stages) developed specially for lifting mechanism offers high reliability and compact size, many options for lifting speeds and low noise level (79-82dB). Lubricated for life for minimum maintenance.

Self breaking lifting motor

3 phase asynchronous electric motors with cylindrical rotor and build-in DC disc brake are available for single or dual speed option. Single polarity motor allows inverter control for smooth acceleration and deceleration of lifting speed.

Wire rope guide

The rope guide consists of three parts: the guide ring, pressure spring and rollers. The pressure spring ensures that the rope sits correctly into the drum groove whilst the guide ring always maintains the rope in the correct position.

Over-load limiter

Dynamometric pin overload limiter. It is optional with many extra features: Load spectrum/ measuring device, lifting calculation etc. All hoists are endowed with overload limiter are with 2 reaction thresholds.

The Body

Stable construction provides reliable and precise operation of the whole mechanism. Precision body component assembling and high quality and controlled welding. Processing of the body on one place.

Control panel

Every hoist is equipped with high quality full-set control panel. Any special requirement (wireless push button, inverters) can be included under request.
