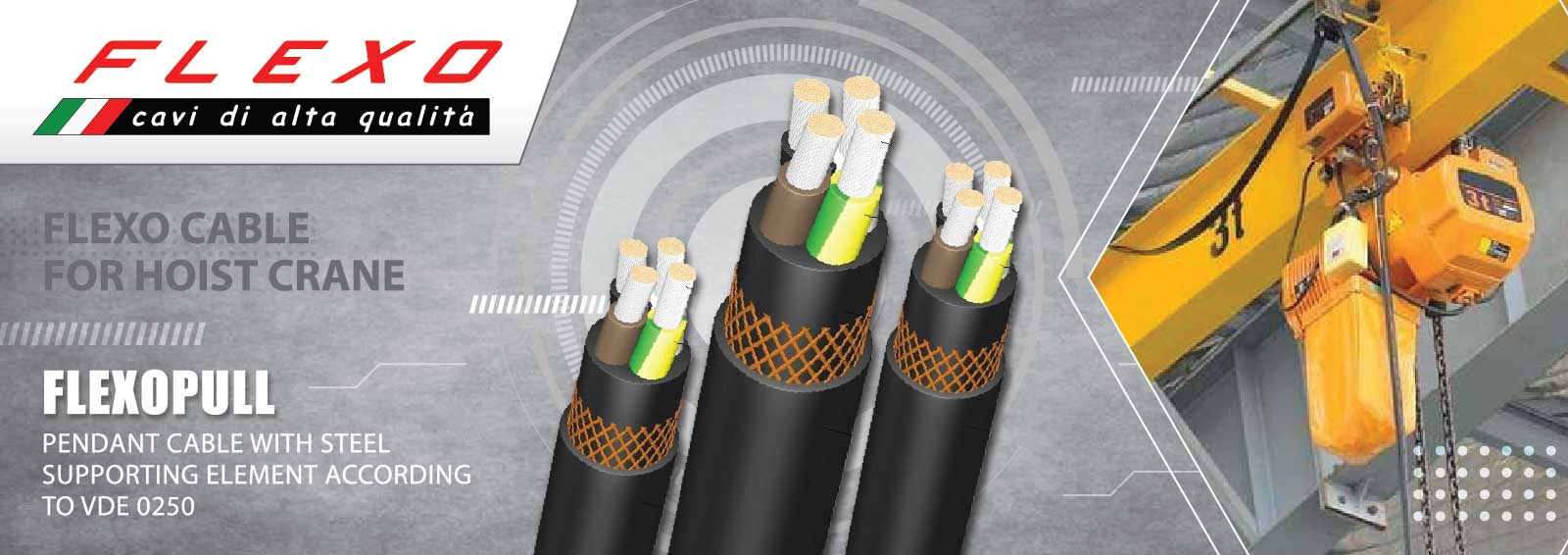

FLEXOPULL is a PVC-RUBBER insulated and jackted cable for connection control panel. This cable special torsion-free steel supporting element integrated in single or parallel on both side of the outher jacket, which absorbs the resulting tansile load during operation the tensile strength is 2100N and allows free canying installation up to 150 meters (492 feet) in lenght.

Features
  • Finely stranded bare copper conductors.
  • Cable is flexible even at colder temperatures with slide wrap between cores and outer jacket
  • PVC insulation
  • Black PVC-RUBBER outer jacket.
  • Single or Two steel supporting members parallel on opposite sides of the jacket.
  • jacket is Oil resistant and flame retardant.

Technical Data
Minimum Bend Radius : 10 x cutter diameter
Temperature Range : -15C to + 70 C
Nominal Voltage : 300/500V
Test Voltage : 3000V
Conductor Stranding : Supperfine wire per VDE 0295, Class6, IEC 60228 CI.6
Color Code : Black with white sequental numbers plus a green/yellow ground
Approvals : Based on VDE 0250


Applications
Pendant Type Strain Wires No. Of conductors nominacross section Approx.Total width mm Approx.Distance Between Strain Wires mm Approx.Outside Diameter mm Copper weight kg/km
SVVT 3X1,5 15.10 - 09.80 43.24
SVVT 5X1,5 14.30 - 10.50 72.08
SVVT 8X1,5 16.30 - 12.50 155.30
SVVT 10X1,5 18.10 - 14.30 144.16
MTTY 12X1,5 26.20 21.00 16.90 173.00
MTTY 16X1,5 28.00 21.30 17.90 230.66
MTTY 20X1,5 20.20 24.00 20.10 288.33

Suitable for outdoor use and as self-supporting shaft cable.these special cable with lateral suspension strands used to remote control of overhead cranes from push button boxes.
