Lift and Transfer: Indotara® Jib Cranes lift and transport materials in semi-circles (200 degrees) or full circles (360 degrees) around their support structure. Jib cranes can also be used to “hand off” materials to adjacent workstations or conveyors. Hold Tools Where You Need Them: manual and electric hoists, manipulators, balancers, welding wire feeders, and other tools can easily travel overhead on trolleys along the jib boom. Maximize Your Space: our wall-mounted models require no floor space. We offer models with unrivaled clearance, both above and under the boom. Use What You Already Have: on some designs, you can use your building’s existing columns or overhead beams to mount our jib cranes, saving you money. Indoor/ Outdoor: our freestanding jibs can be weatherized for outdoor use. Reach Anywhere: our articulating jib cranes have booms with two sets of axes so they can reach around obstacles, such as columns or corners. Complement Your Existing Cranes: our jibs quickly fold out-of-the-way of large overhead cranes. Versatile Capacities: from 100 pounds to 15 tons, with hundreds of pre-engineered models.
|
|

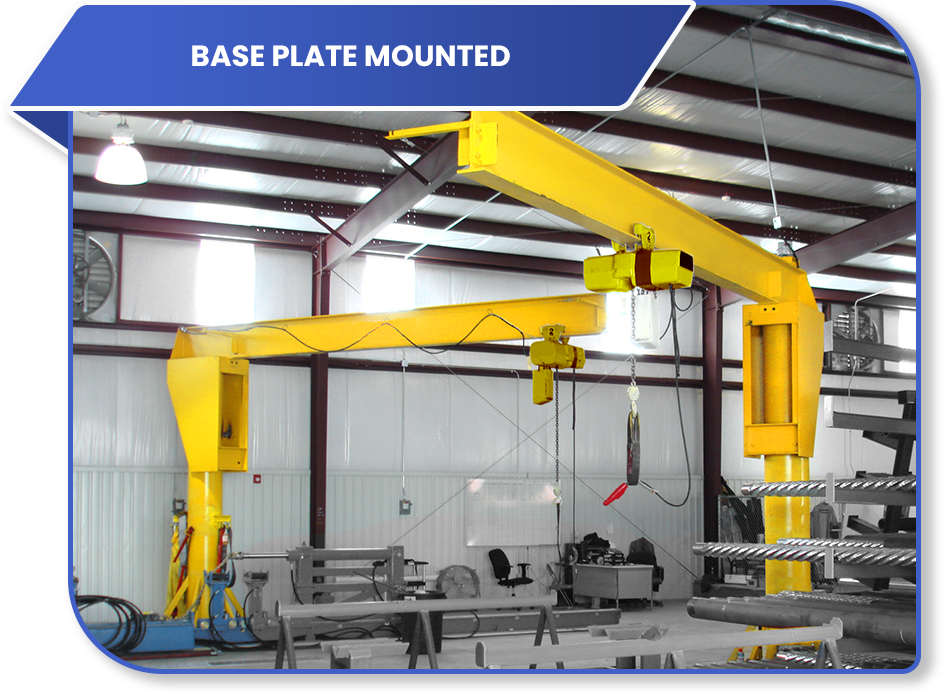

Base Plate Is secured by anchors bolts to a prescribed, reinforced concrete foundation. | |
Six anchor bolts for masts less than 16 inches in diameter. | |
Twelve bolts for diameters 16 inches or greater. | |
Easy to Install |

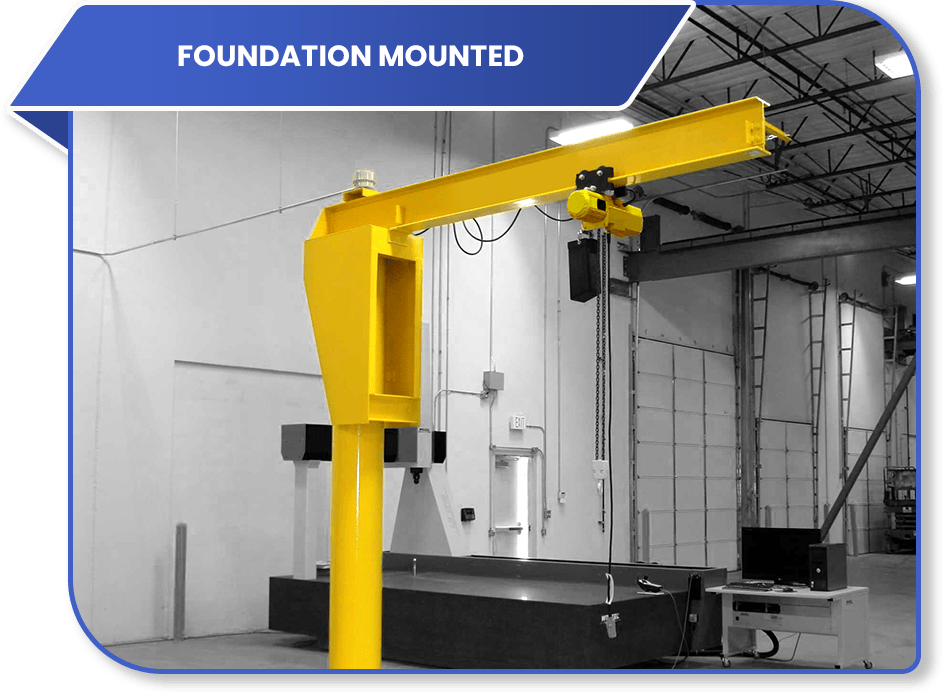

Plate positions and plums the mast by anchoring it to the first-pour concrete footing | |
Spacious : no knee braces, freeing up the area at the foot of the mast | |
Square steel plate comes welded to bottom of mast | |
The Second-pour supports the mast |

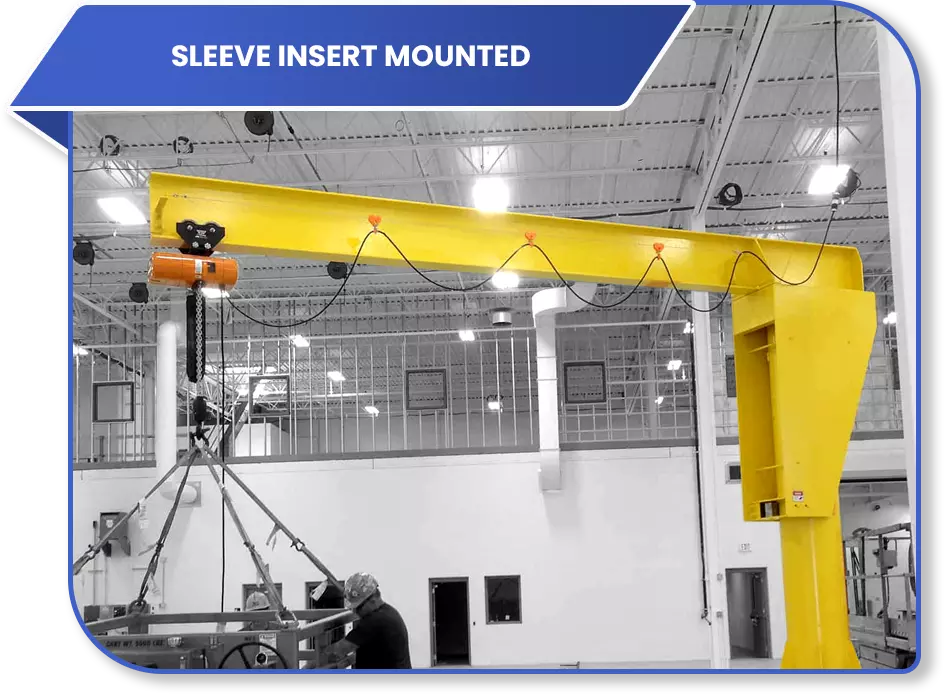

Relocatable : sleeve insert allows for crane relocation without damaging the mast | |
The mast is then placed into sleeve, leveled by wedges, and welded into place |
|
Spacious : no knee braces, freeing up the area at foot of crane’s mast | |
The second-pour supports the sleeve |
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
