Jib Cranes

Indotara Wall-Traveling Jib Cranes  provide long lateral movement of materials without taking up any floor space or interfering with large overhead cranes. By quickly handling all of the smaller lifts, wall-traveling jibs free up your big cranes, increasing overall plant productivity. An entire series of workstations — conceivably the entire length of your building — can be covered by one agile, wall-traveling crane. Our Wall-Traveling Jib Cranes are cost-effective, custom engineered solutions specific to your production needs and building specifications.

Wall-Traveling Jib Crane
wall traveling jib crane
  • A variety of voltage options :
    208-3-60
    230-3-60
    460-3-60
  • Hom and beacon.
  • Variable frequency drives (VFDs) for multi-speed operation.
  • Voltage Options

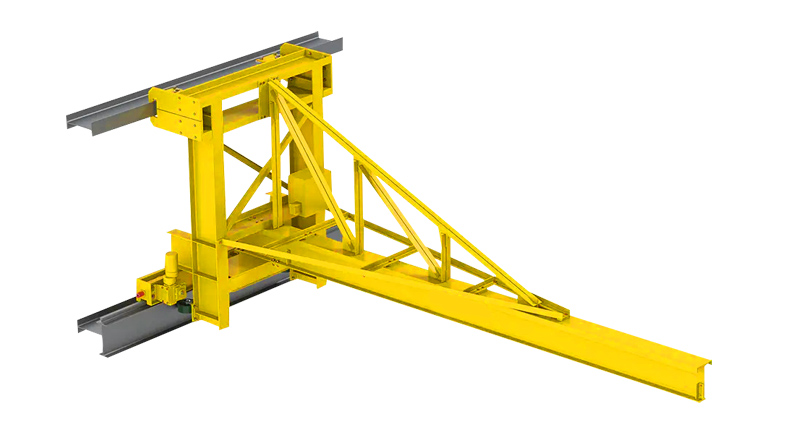

SPECIFICATION
Model : Wall-Traveling
Key Feature : Fress up large overhead cranes
Boom Rotation : N/A
Capacity : Up to 5 tons
Spans : Up to 40'
Beam Type : Standard S-beam
Motorized Rotation : N/A
High Under Boom
: Determined by application
Foundation Requirements : No
Powered Rotation
: Yes
Warranty : 10 years construction
Price Call Sales

• Wall-Traveling

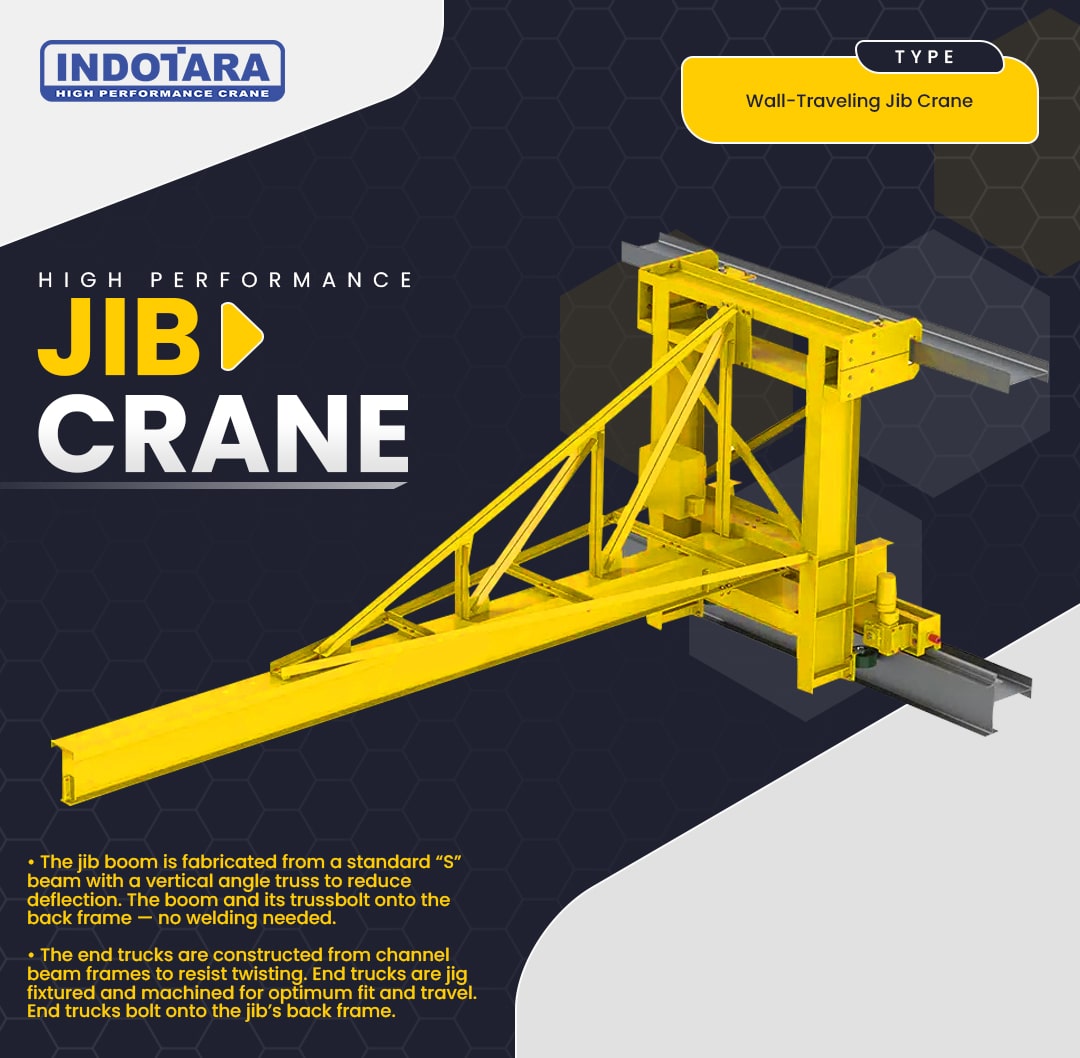

  • The jib boom is fabricated from a standard “S” beam with a vertical angle truss to reduce deflection. The boom and its trussbolt onto the back frame — no welding needed.
  • The end trucks are constructed from channel beam frames to resist twisting. End trucks are jig fixtured and machined for optimum fit and travel. End trucks bolt onto the jib’s back frame.
  • The upper end trucks use forged-steel, double-flanged, crane wheels for long service life.
  • The crane drive has a squirrel cage motor with double-reduction spur gear reducer for dependability.
  • Variable Frequency Drives (VFDs) include mainline contactor, control transformer, inverter acceleration control, and fuses in NEMA 3R, 4, or 12 enclosures.



wall traveling jib crane


INDOTARA WALL-TRAVELING JIB CRANE :
HIGH QUALITY, HEAVY DUTY,UNSURPASSED PRECICION CRANE QUALITY, FULL-CANTILEVE DESIGN
PROVIDE THE BEST WARANTY IN THE INDUSTRY.

WALL-TRAVELING JIB CRANE

wall traveling jib crane

wall traveling jib crane
