Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist

Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist - Hitachi Wire Rope Hoists adalah jenis pengangkat ortodoks yang banyak digunakan untuk tujuan umum. Hitachi Wire Rope Hoists menghasilkan kinerja tinggi untuk digunakan dalam pekerjaan kasar seperti produksi umum di pabrik, pertambangan, kereta api, dan gudang.

JUAL HITACHI WIRE ROPE HOIST (LOW HEADROOM)


Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist

Price

Call Sales - / (-Meter)
*Price Include Tax
*Price Include Delivery Jabodetabek, Surabaya, Medan & Bandung.
Specifications Table
  Model Name   : 1/2L-T 55
  Capacity
   : 1/2 ton
  Hoisting Lift
   : 6
Hoisting Speed : 11 m/min (50Hz)
: 13 m/min (60Hz)
Hoisting Motor
 : 1.0 Kw(50Hz)
: 1.2 Kw (60Hz)
No. of poles
 : 4
Traversing Speed
 : 21 m/min(50Hz)

: 25 m/min(60Hz)
Traversing Motor
 : 0.30 Kw(50Hz)

: 0.36 Kw(60Hz)
Wire Rope No Of Falls
 : 4
Wire Rope Composition : 6xFi(19)-B
Wire Rope Diameter
 : Ø4
Rating : 40% ED400 Starts/h
Operating method
 : Pushbutton operation
Electric Source (3 phase)
 : 200V 50/60Hz - 440 - 460V 60Hz
Control Voltage
 : 200 - 50/60Hz
Warranty
 :  -

Description

1/2 ton (6m)

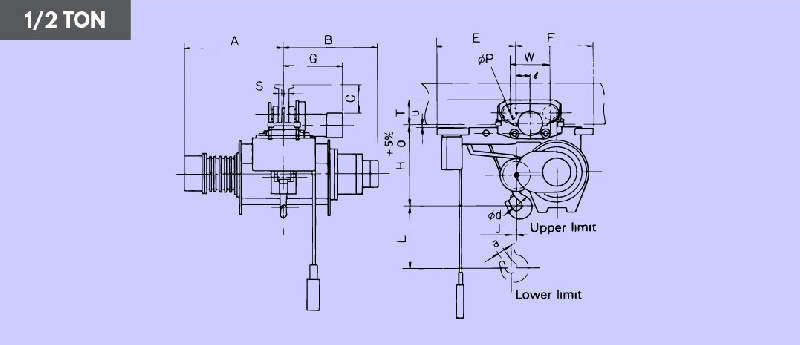

Dimension Low Headroom

Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist

MODEL 1/2L-T55
HOIST TYPE
 1/2L5
TROLLEY TYPE
 1/2T5
CAPACITY (t)
 1/2
Approx.Dimension L 6000
H 400
A 550
B 430
W 200/290
E
 410
F 340
Ød
 40
J 26
Y -
Øp 96
a 21
L 40
Min. Curve Radius (m)
 1.3(5.0)
Dimension with respect to i-beam
 S T U C G
(150 x 75 x 5.5)
 17 147 53 85 361
200 x 100 x 7
 42 148 52 135 374
250 x 100 x 7
 67 151 49 185 387
300 x 150 x 11.5
 - - - - -
450 x 175 x 11
 - - - - -
Approx. weight (Kg)
 155

Rated Load
HITACHI WIRE ROPE HOIST :
HIGH QUALITY, HEAVY DUTY,UNSURPASSED PRECICION CRANE QUALITY, FULL-CANTILEVER DESIGN
PROVIDE THE BEST WARANTY IN THE INDUSTRY.
FEATURES HITACHI WIRE ROPE HOIST

Jual Hitachi Hoist Murah, Jual Electric Chain Hoist, Jual Wire Rope Hoist
