Masterpac Compaction Equipment

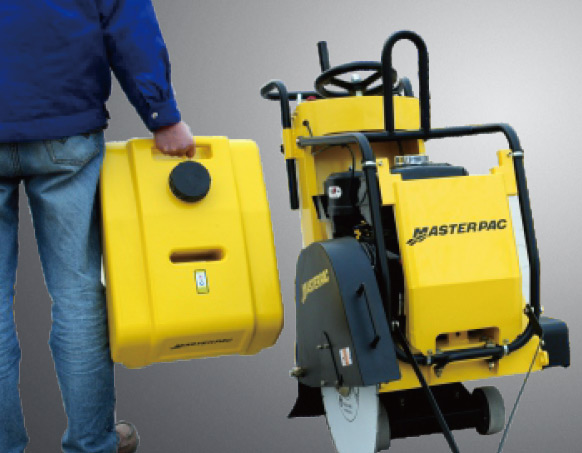

Jual Pemotong Beton Floor Saw - Masterpac


New
  • Dual blade flanges & reversible guard enable right and left hand cutting.
  • Rugged adjustable pointer wheel assembly, adaptable for left and right hand cutting, is durable and accurate.
  • Four rubber tyred, cast iron wheels provide stability and accurate cutting.
  • Strong protected frame for easy transportation and protect engine undamaged.
  • Super-rigid box frame ensures straight cuts while resisting warping and vibration--prolongs saw life; extends blade life.
  • Quality shaft bearings for long service life.
  • Comfortable grip handles.
  • Easy crank for raising/lowering cutting depth.
  • Hinged front, lift-up blade guard is designed to provide easy blade replacement.
  • Saw position guide helps ensure straight cuts.
  • Water system provides an optimum flow and volume of water to the blade.
  • Dual blade flanges & reversible guard enable right and left hand cutting. (PMF20)
  • Rugged adjustable pointer wheel assembly is durable and accurate, helping ensure straight cut.
  • Compact and highly manoeuvrable in operating and transporting.
  • Up-mounted water tank makes the center of gravity above the blade shaft and therefore enchace the effeciency of cutting.
  • Cyclone air filter to better protect the petrol engine in dusty and severe working conditions, increasing the saw's life and reducing the maintenance.
  • Convenient wheel for raising or lowering the cutting depth.
  • Brake system makes it easy to stop the saw and ensures working safety.

Product Detail

Working Size (mm)

Model A B C
PMF14 Series 1560 480 950
PMF18 Series 1460 585 950

Model A B C
PMF16 Series 1516 568 1000
PMF20 Series 1696 632 1001

Technical Specification

Model PMF14H PMF14R PMF14L
Engine Type Honda GX200 Robin EX17 Lombardini LD225
Power kw(hp) 4.8(6.5) 4.2(5.7) 3.5(4.8)
Weight kg(lb) 77(169) 76(167) 89(196)
Max.Cutting Depth cm(in) 11(4.3)
Blade Size cm(in) 30-35(12-14)
Depth Adjustment Handle Rotation
Driving Manual Push
Water Tank Capacity L(Gal) 28(6.2)
Model PMF18H PMF18R PMF18L
Engine Type Honda GX390 Robin EX40 Lombardini LD440
Power kw(hp) 9.6(13) 10.4(14) 8.1(11)
Weight kg(lb) 138(304) 138(304) 152(335)
Max.Cutting Depth cm(in) 14(5.5)
Blade Size cm(in) 30-35(12-14)
Depth Adjustment Handle Rotation
Driving Manual Push
Water Tank Capacity L(Gal) 35(7.7)


Model PMF16
Engine GX270QXC9
Power kw(hp) 6.6(9)
Weight kg(lb) 106(234)
Max. Cutting Depth cmm(in) 13.5(5.3)
Blade Size cm(in) 40(16)
Depth Adjustment Handle Rotation
Driving Manual Push
Water Tank Capacity L(Gal) 31(6.8)
Model PMF20
Engine GX390QXC9
Power kw(hp) 125(276)
Weight kg(lb) 18.4(7.2)
Max. Cutting Depth cmm(in) 18.4(7.2)
Blade Size cm(in) 50(20)
Depth Adjustment Handle Rotation
Driving Manual Push
Water Tank Capacity L(Gal) 31(6.8)
