Jual Double Girder Crane, Harga Double Girder Crane, Podem Double Girder Crane Murah - Double girder bridge cranes find application when greater capacities are requested and with high operation requirements. In equal conditions double girder bridge cranes offer higher lifting heights.

The main Podem crane kits features are reliability, safety and attractive cost effectiveness intended to crane manufacturers or crane service providers. Podemcrane is clearly the biggest hoist manufacturer in Central and Eastern Europe and has remained one of the most progressive companies in the industry. We are designing reliable products reflecting our customers individual needs. We have experienced engineers who make sure our production is efficient and well controlled. Product testing and quality control remain of great importance. Our production factory spreads on a territory of 30.000 sq.m.

All our products meet the European Union health and safety requirements in compliance with Machinery Directive 2006/42/E

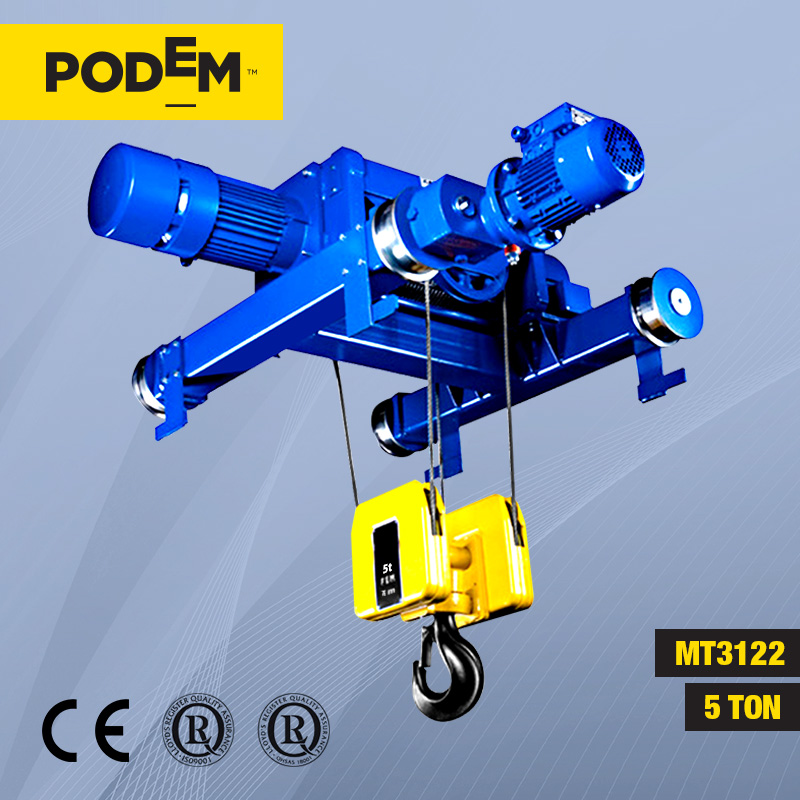

JUAL DOUBLE GIRDER CRANE - 5 TON

Price

Rp. 107.249.000,-

*Price Include Tax

Specification

Model			MT3122
Capacity			5t (Pure Capacity)
Lifting height			10 m
Hoisting Speed			4/1.3 m/min
Hoist Motor			4 Kw*max.
Traversing Speed			20/6 m/min
Traversing Motor			1 x 0.37 Kw*Max
Control Voltage			48 VAC
Power Supply			380 VAC , 50 Hz
Wire rope			Ø10 mm (Reeving : 4/1)
FEM/ISO Class			2 m
Rail Gauge			1000 mm
Body Frame Group			MT312
Motor Cooler			Built-In heavy duty cooler fan
Load Limiter Protector			Over-load limiter with 2 reaction threshold
Country of Origin			Bulgaria, European Union
Warranty			Electrical 1 Year; Mechanical 3 Years

Description

Double Girder Crane

Podem produces double rail trolleys with capacity from 2 to 50 t and various other characteristics. Non standard double rail trolleys on request.

Hoist Type	Capacity (Ton)	Hook Travel (m)	Dimension (mm)																					Weight (kg)	Qty	kW	Amp	CT speed* (m/min)
Hoist Type	Capacity (Ton)	Hook Travel (m)	C1	Sc	S1	H1	a	b	d	e	e1	e2	f	g	sp	h	q	r	s	u(V1)	u(V2)	Pp	фf	Weight (kg)	Qty	kW	Amp	CT speed* (m/min)
MT3122	5	10	600	1000	478	476	229	240	500	50	75	40	173	160	30	975	240	-72	146	383	383	775	22	544	1	0,18/0,55	2/1.7	20/6

All dimensions are referred to "Standard Products", for all other products please contact Podem for GA drawing.
* Dimension "d" is reﬀered to standard cross travel speeds.
* Dimension Sc is variable dipending of the project.
* Dual speed or ready for inverter.

Electric Wire Rope Hoists

Features

Podem’s wire rope hoist range provides solutions for cranes and replacement applications. There are two series M and MT from 0.8 to 50 t, covering the light, medium and heavy operation modes. A wide range of lifting speeds and lifting heights is available.

Lifting reducer

Planetary gearboxes (2 or 3 stages) developed specially for lifting mechanism offers high reliability and compact size, many options for lifting speeds and low noise level (79-82dB). Lubricated for life for minimum maintenance.

Self breaking lifting motor

3 phase asynchronous electric motors with cylindrical rotor and build-in DC disc brake are available for single or dual speed option. Single polarity motor allows inverter control for smooth acceleration and deceleration of lifting speed.

Wire rope guide

The rope guide consists of three parts: the guide ring, pressure spring and rollers. The pressure spring ensures that the rope sits correctly into the drum groove whilst the guide ring always maintains the rope in the correct position.

Over-load limiter

Dynamometric pin overload limiter. It is optional with many extra features: Load spectrum/ measuring device, lifting calculation etc. All hoists are endowed with overload limiter are with 2 reaction thresholds.

The Body

Stable construction provides reliable and precise operation of the whole mechanism. Precision body component assembling and high quality and controlled welding. Processing of the body on one place.

Control panel

Every hoist is equipped with high quality full-set control panel. Any special requirement (wireless push button, inverters) can be included under request.
