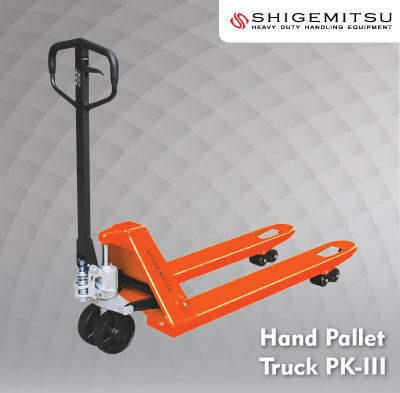

Jual Hand Pallet Truck PK-III - Shigemitsu

Model :		PK-III
Capacity	Q (Kg)	2500
Lowered fork height	h₁₃ (mm)	85
Steering wheel	(mm)	Φ 180
Fork wheel single	(mm)	Φ 74x93
Fork wheel tandem	(mm)	Φ 74x70
Max. lift height	h₃ (mm)	195
Total height	h₁₄(mm)	1214
Overall length	I₁ (mm)	1543/1613
Fork length	I (mm)	1150/1220
Width overall forks	b₅ (mm)	520/550/685
Ground clearance, centre of wheelbase	m₂ (mm)	32
Aisle width for pallets 1000x1200 crossways	A_st (mm)	1743/1813
Aisle width for pallets 800x1200 lentghways	A_st(mm)	1793/1813
Turning radius	W_a (mm)	1276/1346
Service weight	(Kg)	58-70

Hand Pallet Truck

Integrated pump without welding, no any leaking problems.

Frame force is more reasonable, and the strength is more reliable.

Handle seat has hole it is more convenient for installation of control chain.

Forks lowering speed is controllable, with overload valve to avoid overloading.

Options

Steering wheel 200mm (fork wheel 80mm) are available.

Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.

Fork length: 800mm, 900mm, 1000mm, 1100mm.

Foot pedal release.

Pump color: black painting.

Quick lift (double speed lifting).

HATI-HATI BELI HAND PALLET JANGAN YANG ASAL MURAH
Carilah yang : tahan lama, plat tebal, hydraulic berkualitas tinggi, bergaransi lama, suku cadang terjamin,
ada teknisinya, Sebuah hand pallet harus bisa dipakai teru menerus karena didukung oleh penjual yang bertanggung jawab.
