Masterpac Compaction Equipment

Jual Articulated Tandem Roller - Masterpac

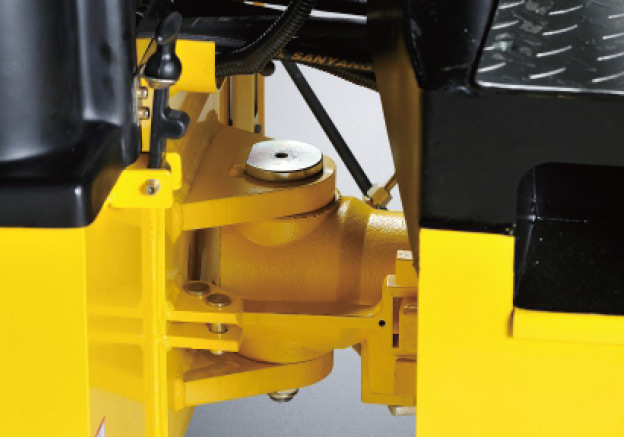

  • Articulated movement with power-assist provides accurate, positive steering control and increases maneuverability in confined job sites.
  • The hydraulic pump and motors are connected in series to offer the maximum traction and smooth rolling as well as excellent gradeability.
  • 40mm side clearance allows close operations near walls and obstructions.
  • Curb clearance 412mm insures flush compaction to the curb.
  • Unobstructured driver visibility-open, uncluttured operator's platform allows clear views.
  • A spacious, vibration-damped operator platform and an ergonomically positioned step make the machine extremely operator-friendly.
  • Flip-open engine hood provides easy accessibility to engine and components for daily maintenance and service.
  • Ergonomic layout and design of the operating controls: the Easy Drive steering wheel, multifunctional control lever, and comfortable armests.
  • Large 100L water tank is equipped with pressurized water system offers consistent water flow.

Product Detail

Technical Specification

Model PDR90H PDR90K
Net Weight(Kgs/Lb) 1354/1985 1430/3153
Operating Weight(Kgs/Lb) 1529/3371 1575/3472
Engine Type HONDA GX690 KUBOTA D902-E3B
Power (kw) 16.5kw 15.1kw
Drum Width (mm/in) 900/35.4
Drum Diameter (mm/in) 560/22
Number of vibrating drums 1/Front wheel 2/Front and rear wheel
Driving system Hydraulic
Number of driving drums 2/Front and rear wheels
Dynamic centrifugal force per drum (kN) 18
Frequency (Hz) 60
Amplitude (mm/in) 0.5/0.02
Dynamic linear force 83N/CM (Front Wheel)
Forward/reverse speed 0-8.7
Maximum gradebility 30%
Turning Radius 2.3m(inside)
Steering angle ±30°
Hydraulic oil tank capacity (L/Gal) 37/8.1
Water tank capacity (L/Gal) 100/22
Fuel tank capacity (L/Gal) 30/6.6
Light 2(Front), 2(Back), Warning lamp(Overhear)
Tracting device Front and rear
Side clearance (R/L) 40/40mm(R/L)
Curb clearance (R/L) 415/415(R/L)
Dimension (mm/in) 2019x994x2308/(1730)
79x39x91(68)
