Heavy Duty BOMAC Forklift - Bomac Forklifts with strong & reliable performance, using the best engine in its class and specially designed with adjusted weight, so that it is stable and safe when used.

BOMAC is now vigorously improving its services and products with high quality, enabling dealers to meet all customer needs. Based on experience, stability and responsibility, BOMAC Forklifts is more than 30 years old with deep connotation, rich experience and many achievements.
BOMAC MANUAL DIESEL FORKLIFT 1T, RD10M-BTD3 - BOMAC ENGINE
Product Specification
Best Price : Rp 227,475,706 / Unit
Promo Price : Rp 163,782,508 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-485
BOMAC Heavy Duty Diesel Forklift, BOMAC Engine
• Model : RD10M-BTD3
• Engine Type : Diesel
• Capacity : 1000 kg
• Lifting Height : 3000 mm (Mast 2 Stage)
• Mast Height : 1995 mm
• Load Center : 500 mm
• Free Lift Height : 150mm
• Fork Size : 770x100x31 mm
• Overall Width : 1090 mm
• Engine Model : BOMAC TD3
• Engine Rated Output : 30kw/2600rpm
• Transmission : Manual
• Warranty : Electrical 12 Months
Features
+ Heavy Duty Aluminium Radiator by Sumitomo Riko, Japan
+ Rust free hydraulic piston rod by HITACHI ALLOY, Japan
+ Heavy duty polyurethane coating with JOTUN, Norway
+ Heavy duty wear resistant fork by HARDOX, Sweden
+ Transmission by ZF Friedrichshafen AG, Germany
+ Mast by Winkel GmbH, Germany
+ Electrical by EATON, England
+ Seal by NOK, JAPAN
+ Double tip gasket & conical sealing among pipes connector
+ With air intaking system, prolonging engine service life
+ Big size radiator (1.5 more than another forklift)
+ Dust proof and water proof steering axle
+ BOMAC Advance Safety (BAS) Package
+ Low maintenance and operating cost
+ Ready to operate 24 hours nonstop
REQUEST QUOTE
Get your quotation less than 1 minute now!!

Bomac Forklift Spesifikasi 1,5 Ton


Characteristic
1. Manufactory BOMAC
2. Model RD-10
3. Power Type Diesel
4. Rated Capacity (Kg) 1000
5. Load Center (mm) 500
6. Driving Mode Sit-on type

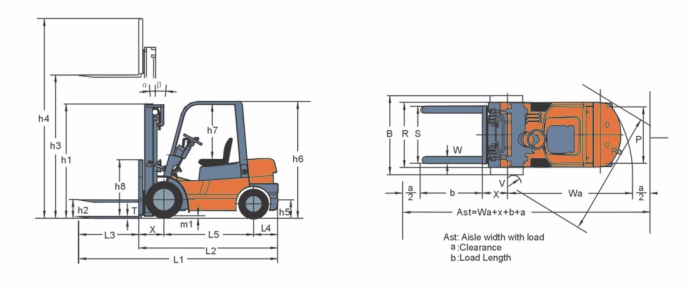

Size
7. Overall Max. Lifting Height (With Backrest) h4 4030 mm
8. Max. Lifting Height h3 3000 mm
9. Height Mast Rectared (Upright) h1 1995 mm
10. Free Lift Height h2 152 mm
11. Backstreeet Height (From Upper Face of Forks) h8 1008 mm
12. Overhead Guard Clearance (From Face of Seat) h7
1025 mm
13. Overall Height (Overhead Guard) h6 2070 mm
14. Overall Length (Without Forks) (L1/L2) 2941 / 2171 mm
15. Front Overhang X 418 mm
16
Rear Overhang L4 350 mm
17. Wheel Base L5 1400 mm
18. Coupler Height h5 250 mm
19. Min. Ground Clearance Under Mast m1 110 mm
20. Overall Width B 1070 mm
21. Lateral Fork Adjustment (Outside of Fork) R 950 / 200 mm
22. Tread (Front / Rear) ( S / P ) 890 / 920 mm
23. Inside Turning Radius V 110 mm
24. Outside Turning Radius Wa 1880 mm
25. Min. Intersecting Aisle Ra 1977 mm
26. Tilting Angles (Forward / Backward) α / β 6° /12°
27. Fork Size a x b x c 770 x 100 x 32
Performance
28. Max. Traveing Speeds (Laden/Unladen) Km/h 13.5/14.5
29. Lifting Speeds (Laden/Unladen) mm/s 590/650
30. Lowering Speeds (Laden/Unladen) mm/s 450/550
31. Max. Draw-Bar Pull (Laden/Unladen) kN 18/7
32. Max. Negotiabe Gradient (Laden/Unladen) % ≥20
Weight
33. Service Mass Kg 2220
34. Load Wheel .Laden (Front/Rear) Kg 3640/520
35. Load Wheel .Unladen (Front/Rear) Kg 1170/1490
Tyres
36. Wheel (Front/Rear)      X = Driving Wheel 2X/2
37. Tyre (Front/Rear) Pneumatic Tyre
38. Tyre Size (Front/Rear) 6.50-10-10PR / 5.00-8-8PR
39. Service Brake Hydraulic - Foot Pedal
40. Paking Brake Mechanical - Hand Lever

1. Durable transmission
2. Equiped with the intake system & intake silencer
3. Optional air filter pressure alarm device
4. Automatic engine preheating system
5. Cyclone Air Filter
6. Lost fom casting
7. Various high-power engines are available for customers' optional choices, and the emission meets the latest European & American environmental regulation. Option choices, and the emission meets the latest European

Air suction inlet installing on top of the overhead guard brace far away from the dust produced when travelling. Cleaner air sucked prolonging engine service life.

Using Alumunium plain plate corrugated fin type radiator, wich has higher heat transfer capability.
Optimise cooling system and ensure engine performance even in extreme temperatures and environments.
Installation of heat resistance and sound absorbing material and rubber sealing.
Easy lift engine hood with wide 80 degree opening.
Engine hood assist damper with lock device.
Compact structure, small deformation when loading.
Shock absorber installed improving driving comfort.
Dust proof and water proof structure increasing service life and reliability effectively.
Low maintenance cost in later stage.
