Heavy Duty BOMAC Forklift - Bomac Forklifts with strong & reliable performance, using the best engine in its class and specially designed with adjusted weight, so that it is stable and safe when used.

BOMAC is now vigorously improving its services and products with high quality, enabling dealers to meet all customer needs. Based on experience, stability and responsibility, BOMAC Forklifts is more than 30 years old with deep connotation, rich experience and many achievements.
Product Specification
Best Price : Rp 496,383,975 / Unit
Promo Price : Rp 357,396,462 / Unit

* Price exclude PPN, Ex-Works Cikupa
* Price & Spec can be changed without prior notification

SKU - DHE-150

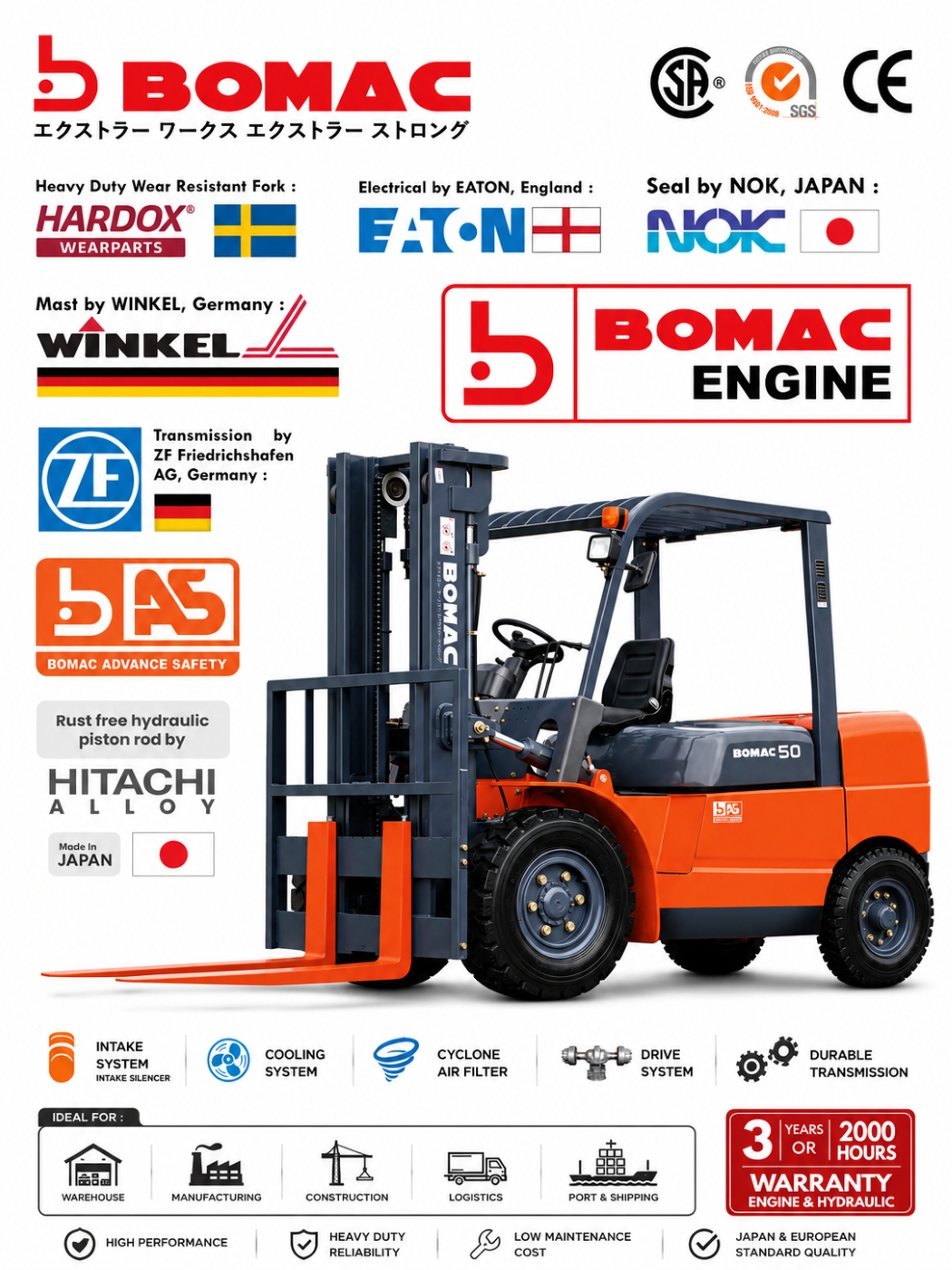

BOMAC Heavy Duty Diesel Forklift, BOMAC Engine
• Model : RD50M-BTD4 Manual Transmission
• Engine Type : Diesel
• Capacity : 5000kg
• Lifting Height : 3000 mm
• Mast Height : 2275 mm
• Load Center : 500mm
• Free Lift Height : 150mm
• Fork Size : 1070x150x50
• Engine Model : Bomac TD4-K7
• Engine Rated Output : 61kw/2200rpm
• Engine Rated Torque : 305Nm/1400-1600rpm
• Transmission : Manual Shift
• Warranty : 3 years or 2000 hours
Features :
- Heavy Duty Aluminium Radiator by Sumitomo Riko, Japan
- Rust free hydraulic piston rod by HITACHI ALLOY, Japan
- Heavy duty polyurethane coating with JOTUN, Norway
- Heavy duty wear resistant fork by HARDOX, Sweden
- Transmission by ZF Friedrichshafen AG, Germany
- Mast by Winkel GmbH, Germany
- Electrical by EATON, England
- Seal by NOK, JAPAN
- Double tip gasket & conical sealing among pipes connector
- With air intaking system, prolonging engine service life
- Big size radiator (1.5 more than another forklift)
- Dust proof and water proof steering axle
- BOMAC Advance Safety (BAS) Package
- Low maintenance and operating cost
- Ready to operate 24 hours nonstop

Bomac Forklift Spesifikasi 5 Ton

1. Manufactory BOMAC
2. Model RD-50
3. Power Type Diesel
4. Rated Capacity (Kg) 5000
5. Load Center (mm) 500
6. Driving Mode Sit-on type
7. Overall Max. Lifting Height (With Backrest) h4 4250 mm
8. Max. Lifting Height h3 3000 mm
9. Height Mast Rectared (Upright) h1 2275 mm
10. Free Lift Height h2 150 mm
11. Backstreeet Height (From Upper Face of Forks) h8 1250 mm
12. Overhead Guard Clearance (From Face of Seat) h7
1000 mm
13. Overall Height (Overhead Guard) h6 2270 mm
14. Overall Length (Without Forks) (L1/L2) 4209 / 3139 mm
15. Front Overhang X 555 mm
Rear Overhang L4 584 mm
17. Wheel Base L5 2000 mm
18. Coupler Height h5 300 mm
19. Min. Ground Clearance Under Mast m1 175 mm
20. Overall Width B 1480 mm
21. Lateral Fork Adjustment (Outside of Fork) R 1340 / 300 mm
22. Tread (Front / Rear) ( S / P ) 1180 / 1190 mm
23. Inside Turning Radius V 220 mm
24. Outside Turning Radius Wa 2800 mm
25. Min. Intersecting Aisle Ra 2550 mm
26. Tilting Angles (Forward / Backward) α / β 6° /12°
27. Fork Size a x b x c 1070 x 150 x 50
28. Max. Traveing Speeds (Laden/Unladen) Km/h 18/19
29. Lifting Speeds (Laden/Unladen) mm/s 460/480
30. Lowering Speeds (Laden/Unladen) mm/s <600/>300
31. Max. Draw-Bar Pull (Laden/Unladen) kN 30/15
32. Max. Negotiabe Gradient (Laden/Unladen) % 20/20
33. Service Mass Kg 6700
34. Load Wheel .Laden (Front/Rear) Kg 9550/1800
35. Load Wheel .Unladen (Front/Rear) Kg 2550/4150
36. Wheel (Front/Rear)      X = Driving Wheel 4X/2
37. Tyre (Front/Rear) Pneumatic Tyre
38. Tyre Size (Front/Rear) 300-15-22PR / 7.00-12-12PR
39. Service Brake Mechanical Type
40. Paking Brake Mechanical Manual Type

1. Durable transmission
2. Equiped with the intake system & intake silencer
3. Optional air filter pressure alarm device
4. Automatic engine preheating system
5. Cyclone Air Filter
6. Lost fom casting
7. Various high-power engines are available for customers' optional choices, and the emission meets the latest European & American environmental regulation. Option choices, and the emission meets the latest European

Air suction inlet installing on top of the overhead guard brace far away from the dust produced when travelling. Cleaner air sucked prolonging engine service life.

Using Alumunium plain plate corrugated fin type radiator, wich has higher heat transfer capability.
Optimise cooling system and ensure engine performance even in extreme temperatures and environments.
Installation of heat resistance and sound absorbing material and rubber sealing.
Easy lift engine hood with wide 80 degree opening.
Engine hood assist damper with lock device.
Compact structure, small deformation when loading.
Shock absorber installed improving driving comfort.
Dust proof and water proof structure increasing service life and reliability effectively.
Low maintenance cost in later stage.
