Jual Electric Pallet Truck, Electric Pallet Truck, dengan Harga Murah
Jual Electric Pallet Truck - Shigemitsu is one of best company in material handling equipment especially hand pallet truck & manual stacker. Since decades it's develop special technology on heavy duty product to fulfill customer's need on durable products. Shigemitsu is the name of premium line of Heavy Duty Hand Pallet & Manual Stacker with 3 Years Warranty & 60.000 cycles. Shigemitsu Special hydraulic pump will allow you to enjoy real "strong" performance. |
|
| MODEL | MP20R-I | MP25R-I | MP20R-II | |
| Load Capacity/ rated load | : | 2000 kg | 2500 | 2000 |
| Load center distance | : | 600 mm | 600 | 600 |
| Load distance, center of drive axle to fork | : | 818/868/938 mm | 818/868/938 | 815/865/935 |
| Tyre size, front | : | Φ250x70 mm | Φ250x70 | Φ250x70 |
| Tyre size, rear | : | Φ82x90/Φ78x90 mm | Φ82x90/Φ78x90 | Φ82x126(98) |
| Additional wheels (dimensions) | : | Φ127x57 mm | Φ127x57 | Φ127x572/2(4) |
| Wheels, number front rear (x=driven wheels) | : | 1X+2/4 | 1X+2/4 | 1X+2/2(4) |
| Height of tiller in drive position min./ max. | : | 1150/1450 mm |
1150/1450 | 1150/1430 |
| Overall length | : | 1823/1873/1943 mm |
1823/1873/1943 | 1710/1760/1830 |
| Length to face of forks | : | 723 mm |
723 | 610 |
| Overall width | : | 733 mm |
733 | 775 |
| Fork dimension | : | 53x180x1100 mm |
53x180x1100 | 53x180x1100 |
| : | (1150/1220) mm |
(1150/1220) | (1150/1220) | |
| Width overall forks | : | 520/550/650/685 mm |
520/550/650/685 | 520/550/650/685 |
| Aisle width for pallets 1000x1200 crossways | : | 2135/2185/2255 mm |
2135/2185/2255 | 1910/1960/2030 |
| Aisle width for pallets 800x1200 lengthways | : | 2235/2235/2255 mm |
2235/2235/2255 | 2010/2010/2030 |
| Turning radius | : | 1700/1750/1820 mm |
1700/1750/1820 | 1550/1600/1670 |
| Travel speed, laden/ unladen | : | 7.9/8 Km/h | 6.7/6.8 | 7/7.1 |
| Battery voltage, nominal capacity K5 | : | 24/240 V/Ah | 24/240 | 24/240 |
| Battery weight | : | 240 Kg | 240 | 240 |
| Battery dimension I/w/h | : | 650x250x505 mm | 650x250x505 | 750x170x534 |
| Service weight (with battery) | : | 720 Kg | 720 | 710 |
|
|

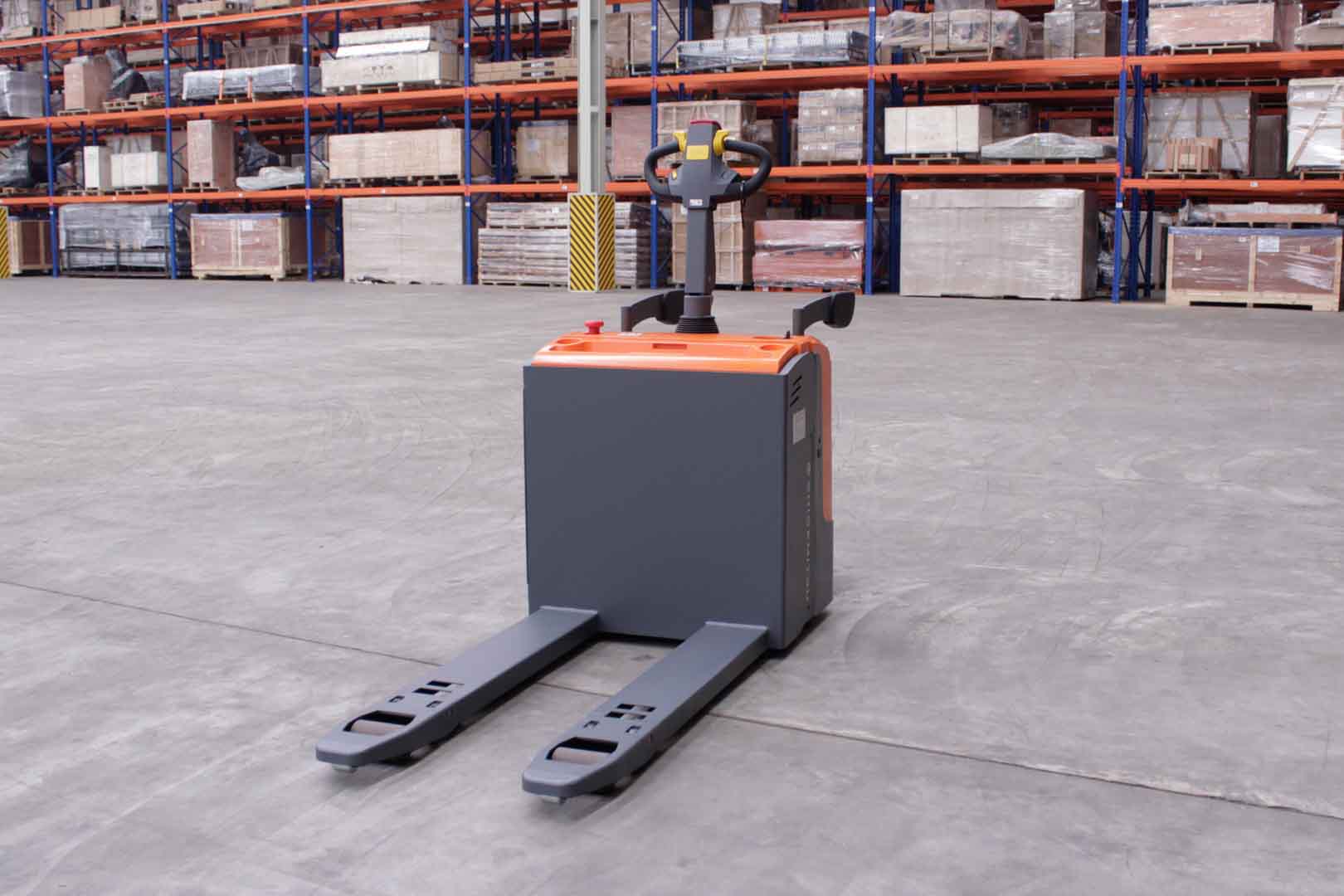

Shigemitsu Electric Pallet Truck dilengkapi dengan Permanent magnet brushless AC motor dengan efisiensi listrik yang tinggi dan bebas perawatan.
Baterai yang didesain tertutup sehingga bebas perawatan, serta kapasitas besar 80AH cocok untuk penggunaan dengan intensitas tinggi.
Shigemtisu electric pallet truck Shigemitsu menggunakan FREI Tiller Head buatan Jerman yang telah terbukti kualitas produknya.
Dilengkapi dengan Emergency stop & bell button, sebagai tanda darurat ketika terjadi kesalahan dalam proses pengoperasian.
Electric Pallet Truck mampu mengaplikasikan Garpu/ Fork dengan berbagai ukuran & dapat disesuaikan dengan kebutuhan.
Dilengkapi dengan BDI & Hour meter display yang sangat membantu memantau daya kapasitas baterai yang tersisa saat digunakan.
Electric Pallet Truck dilengkapi dengan Entry Roller yang memberikan kemudahan dan kenyamanan dalam pengoperasian.
Electric Pallet Truck dilengkapi dengan charger yang sudah terpasang di unit mempermudah pengguna melakukan charge batterai.
