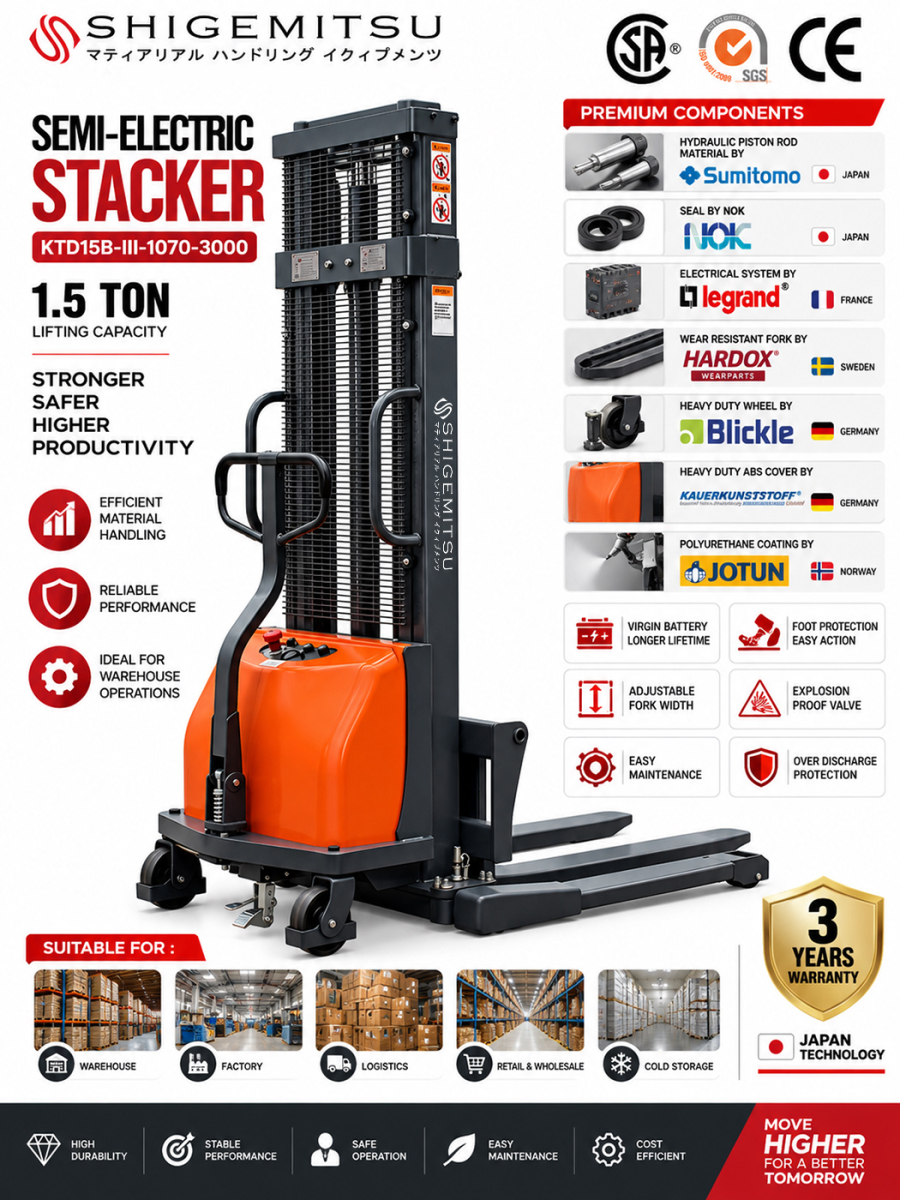

Jual Semi-Electric Stacker, Semi-Electric Stacker, dengan Harga Murah
Jual Semi-Electric Stacker - Shigemitsu is one of best company in material handling equipment especially hand pallet truck & manual stacker. Since decades it's develop special technology on heavy duty product to fulfill customer's need on durable products. Shigemitsu is the name of premium line of Heavy Duty Hand Pallet & Manual Stacker with 3 Years Warranty & 60.000 cycles. Shigemitsu Special hydraulic pump will allow you to enjoy real "strong" performance. |
|
| MODEL | KTD10B-III & KTD15B-III | |
| Capacity | : | 1000 / 1500 Kg |
| Load Centre Distance | : | 500 mm |
| Load distance, centre of drive axle to fork | : | 770 mm |
| Tyre size, front | : | Φ180x50 mm |
| Tyre size, rear | : | Φ98x82 mm |
| Wheels, number front rear (x=driven wheels) | : | 2/2 |
| Height, mast lowered | : | 2145/1895/2145 mm |
| Max. lift height | : | 1600/2500/3000 mm |
| Height, mast extended | : | 2145/3053/3552 mm |
| Overall length | : | 1735 / 1835 mm |
| Length to face of forks | : | 665 / 765 mm |
| Overall width | : | 1132-1532 mm |
| Fork dimension | : | 60/142/1070 mm |
| Width overall forks | : | 295-930 mm |
| Aisle width for pallets 800x1200 lengthways | : | 2267 / 2347 mm |
| Turning radius | : | 1425 / 1505 mm |
| Lift speed, laden/ unladen | : | 0.08/0.1 m/s |
| Lowering speed, laden, unladen | : | 0.15/0.12 m/s |
| Service brake | : | mechanical |
| Battery voltage, nominal capacity K5 | : | 12/120 / 24/120 V/Ah |
| Battery weight | : | 45 / 90 Kg |
| Battery dimension I/w/h | : | 360x170x250 mm |
| Service weight (with battery) | : | 420/475/490 / 470/536/550 Kg |
|
|
Dilengkapi dengan Adjustable floating balance wheel yang dapat disesuaikan tahan terhadap aus dan sangat stabil.
Shigemitsu Warehouse Equipment dilengkapi dengan Roda penggerak Vertikal yang mampu bermanuver dengan radius belokan yang sangat kecil.
Shigemitsu Warehouse Equipment sudah dilengkapi dengan Rem Kaki yang sangat mudah dioperasikan oleh operatur pemula sekalipun.
Shigemitsu Warehouse Equipment dilengkapi Handle-castor chain assist steering system, membantu mengurangi intensitas tenaga kerja.
Shigemitsu dilengkapi dengan jenis garpu/ Fork yang dapat disesuaikan, dan dapat diturunkan dengan tingkat kaki yang sama.
Shigemitsu Warehouse Equipment memiliki sistem keamanan Over-discharge protection device, mampu memperpanjang waktu penggunaan batterai.
Shigemitsu dilengkapi dengan explosion-proof valve, yang dapat memberikan keamanan dan mencegah operator dari bahaya.
Teknologi CANbus menyederhanakan Kompleksitas Wiring, jalur Wiring menjadi jelas dan Rapi serta mudah untuk diperbaiki.
