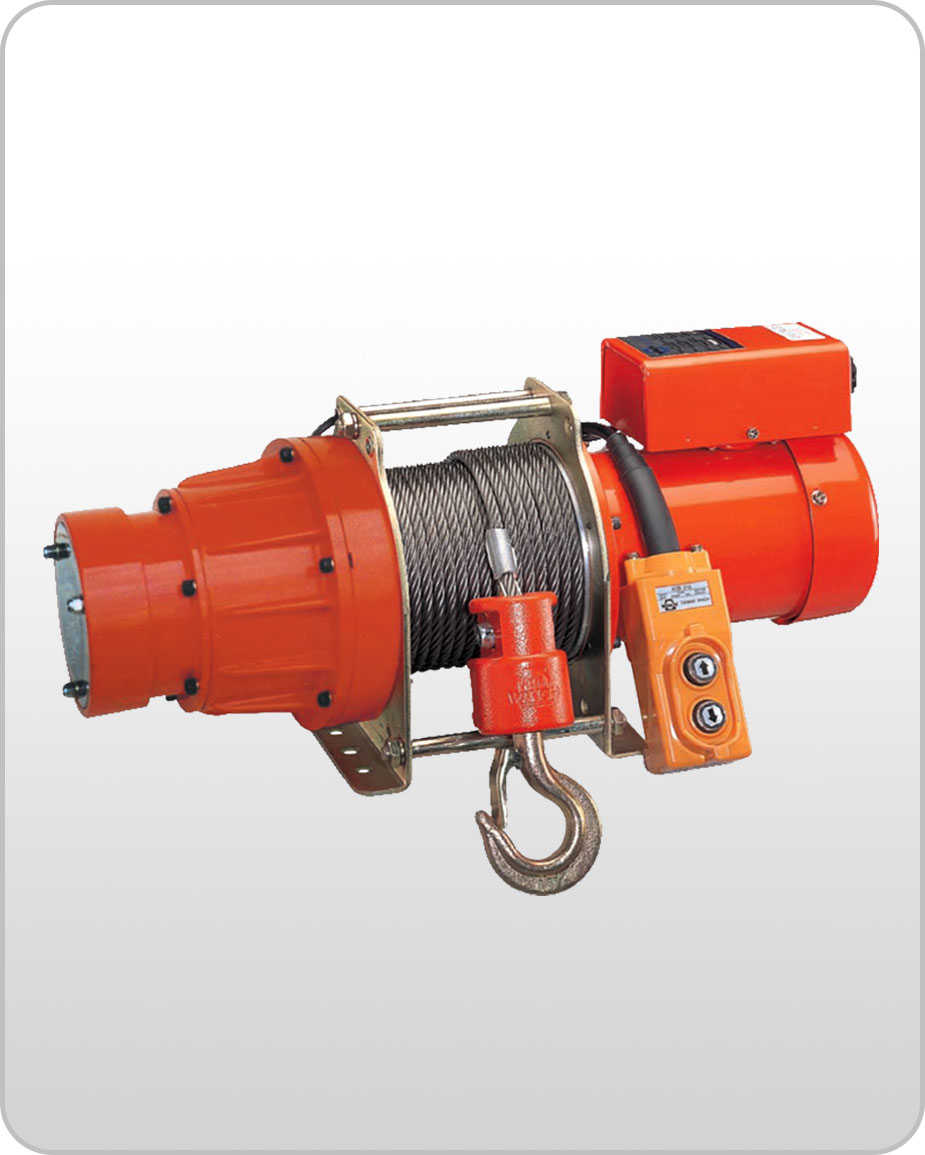

AC Winch PU Series

Heavy Duty Electric Winch - PU series (700 - 3000 Kgs)

700 Kgs

Model PU-1070-10G05
Speed (M/mim) 50HZ 8
60HZ 10
Steel Rope 9mmx50M
Voltage 1PH 220~240V
Motor (KW) 1.3
Body dimensions (mm) A 211
B 292
C 268
D 782
E 322
F 105
N.W. (KG) 95
G.W. (KG) 96.8
Product specifications and features are subject to change as a result of technological progress without prior notice.

1000 Kgs (up to 100m lifting)

Model PU-1100-05H06 PU-1100-05H06
Speed (M/mim) 50HZ 4 4
60HZ 5 5
Steel Rope 10mmx60M 10mmx100M
Voltage 1PH 220~240V 1PH 220~240V
Motor (KW) 1.3 3.3
Body dimensions (mm) A 211 202
B 292 292
C 268 395
D 782 913
E 322 345
F 105
N.W. (KG) 97 106
G.W. (KG) 98.8 108

Product specifications and features are subject to change as a result of technological progress without prior notice.

1200 Kgs

Model PU-1120-10I05
Speed (M/mim) 50HZ 8
60HZ 10
Steel Rope 12mmx50M
Voltage 1PH 220~240V
Motor (KW) 2.0
Body dimensions (mm) A 211
B 292
C 268
D 790
E 332
F 168
N.W. (KG) 180.7
G.W. (KG) 182.7
Product specifications and features are subject to change as a result of technological progress without prior notice.

1500 Kgs

Model PU-1150-05I05 PU-3150-05I05 PU-3150-10I05
Speed (M/mim) 50HZ 4 4 8
60HZ 5 5 10
Steel Rope 12mmx50M
Voltage 1PH 220~240V 3PH 220~440V
Motor (KW) 1.6 1.6 2.0
Body dimensions (mm) A 211
B 292
C 268
D 790
E 332
F 168
N.W. (KG) 178.7
G.W. (KG) 180.7
Product specifications and features are subject to change as a result of technological progress without prior notice.

2000 Kgs (up to 100m lifting)

Model PU-1200-05J03 PU-1200-10J03 PU-1200-07J07 PU-3200-05J07 PU-3200-10J07
PU-3200-10J10
Speed (M/mim) 50HZ 4 8 6 4 8 8
60HZ 5 10 7 5 10 10
Steel Rope 14mmx30M 14mmx70M 14mmx70M 14mmx100M
Voltage 1PH 220~240V 3PH 220~440V
Motor (KW) 1.8 3.7 2.2 1.8 3.7 3.7
Body dimensions (mm) A 320 320 320 320 260
B 420 420 420 420 390
C 268 268 283 283 503
D 806 816 826 826 1045
E 435 435 435 435 415
F 168
N.W. (KG) 174.7 174.7 210.7 210.7 221.5
G.W. (KG) 176.7 176.7 212.7 212.7 235
Product specifications and features are subject to change as a result of technological progress without prior notice.

3000 Kgs (up to 90m lifting)

Model PU-3300-07K05 PU-3300-14K05 PU-3300-07K09
Speed (M/mim) 50HZ 6 12 6
60HZ 7 14 7
Steel Rope 16mmx50M 16mmx90M
Voltage 3PH 220~440V
Motor (KW) 2.2 5.5 2.2
Body dimensions (mm) A 320 320 260
B 420 420 390
C 283 283 503
D 836 826 1045
E 435 435 415
F 168
N.W. (KG) 198.7 214.7 210.7
G.W. (KG) 200.7 216.7 212.7
Product specifications and features are subject to change as a result of technological progress without prior notice.
