Foot Mounted Hoist is application for crane producers or for special trolley execution for special applications. Standard hoist includes: el. equipment; two speeds of lifting; all motors with brakes; load limiter; end switches; galvanized rope; hook.

The main Podem crane kits features are reliability, safety and attractive cost effectiveness intended to crane manufacturers or crane service providers. Podemcrane is clearly the biggest hoist manufacturer in Central and Eastern Europe and has remained one of the most progressive companies in the industry. We are designing reliable products reflecting our customers individual needs. We have experienced engineers who make sure our production is efficient and well controlled. Product testing and quality control remain of great importance. Our production factory spreads on a territory of 30.000 sq.m.

All our products meet the European Union health and safety requirements in compliance with Machinery Directive 2006/42/E

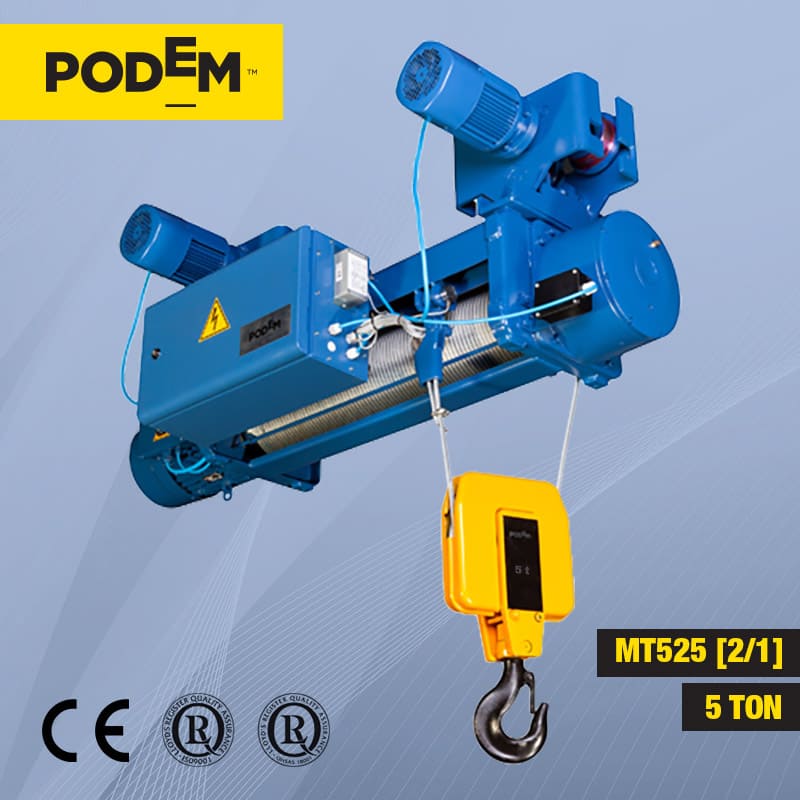

JUAL FOOT MOUNTED HOIST PODEM - MT525 [2/1]

Specification

Model			MT525
Rope Falls			2/1
Capacity (kg)	kg		5000
Groups	FEM		2 m
	ISO		M5
Lifting Speed	m/min	V1	8/2,6
		V2	12/4
Lifting Height	m	H0	10
		H1	14
		H2	20
		H3	26

Description

Foot Mounted Hoist

MT Series, 2 rope falls (reeving 2/1)

Spesifikasi Wire Rope Hoist Foot Mounted

Hoist Type	Capacity (Ton)	Rope (mm)	Hook Travel (m)	Fixed Dimension (mm)										Variable Dimension (mm)											Weight (kg)
Hoist Type	Capacity (Ton)	Rope (mm)	Hook Travel (m)	C	H	a	b	k	d	e	m	n	o	p	q	r	s	t	u (V1)	v (V1)	z (V1)	u (V2)	v (V2)	z (V2)	Weight (kg)
MT305	1	ø 7	10	500	321	105	190	50	300	53	45	48	84	395	91	61	200	218	376	220	150	376	220	150	150
	1	ø 7	14	500	321	105	190	50	300	53	45	48	84	520	154	61	200	218	376	220	150	376	220	150	160
	1	ø 7	20	500	321	105	190	50	300	53	45	48	84	700	244	61	200	218	376	220	150	376	220	150	180
MT308	1.6	ø 7	10	600	321	105	190	50	300	53	45	48	84	395	91	61	200	218	376	220	150	483	257	181	170
	1.6	ø 7	14	600	321	105	190	50	300	53	45	48	84	520	154	61	200	218	376	220	150	483	257	181	187
	1.6	ø 7	20	600	321	105	190	50	300	53	45	48	84	700	244	61	200	218	376	220	150	483	257	181	207
MT312	2.5	ø 10	10	670	321	105	190	50	300	40	48	56	110	440	90	77	246	292	483	257	181	483	257	181	225
	2.5	ø 10	14	670	321	105	190	50	300	40	48	56	110	570	155	77	246	292	483	257	181	483	257	181	255
	2.5	ø 10	20	670	321	105	190	50	300	40	48	56	110	775	258	77	246	292	483	257	181	483	257	181	285
MT316	3.2	ø 10	10	670	321	105	190	50	300	40	48	56	110	440	90	77	246	292	483	257	181	607	310	240	220
	3.2	ø 10	14	670	321	105	190	50	300	40	48	56	110	570	155	77	246	292	483	257	181	607	310	240	252
	3.2	ø 10	20	670	321	105	190	50	300	40	48	56	110	775	258	77	246	292	483	257	181	607	310	240	296
MT525	5	ø 12	10	770	378	133	212	53	325	41	60	61	133	455	90	78	266	360	616	310	251	661	310	251	480
	5	ø 12	14	770	378	133	212	53	325	41	60	61	133	590	157	78	266	360	616	310	251	661	310	251	510
	5	ø 12	20	770	378	133	212	53	325	41	60	61	133	795	260	78	266	360	616	310	251	661	310	251	540
	5	ø 12	26	770	378	133	212	53	325	41	60	61	133	995	360	78	266	360	616	310	251	661	310	251	560

Dimensions are for hoists with FEM 2m/ISO M5, for 3m/M6 see table MT2-3m.
All dimensions are referred to "Standard Products", for all other products please contact Podem for GA drawing.

Hoist Type	Capacity (kg)	Hook Position	10				14				20				26
Hoist Type	Capacity (kg)	Hook Position	R1	R2	R3	R4	R1	R2	R3	R4	R1	R2	R3	R4	R1	R2	R3	R4
MT305	1000	uep	351	404	114	131	378	435	87	100	400	461	65	74	-	-	-	-
MT305	1000	dep	169	195	295	341	187	215	277	321	198	228	267	307	-	-	-	-
MT308	1600	uep	561	647	182	210	604	697	139	160	640	738	103	119	-	-	-	-
MT308	1600	dep	271	312	472	545	299	344	444	513	316	365	427	492	-	-	-	-
MT312	2500	uep	916	885	355	344	997	964	274	265	1069	1034	202	195	-	-	-	-
MT312	2500	dep	433	419	838	810	475	459	796	770	522	504	749	725	-	-	-	-
MT316	3200	uep	1172	1133	455	440	1276	1233	351	340	1369	1323	258	250	-	-	-	-
MT316	3200	dep	555	536	1072	1037	608	588	1019	985	668	645	959	928	-	-	-	-
MT525	5000	uep	1729	1760	749	762	1899	1932	597	590	2050	2085	429	436	2136	2173	342	349
MT525	5000	dep	814	829	1664	1693	912	927	1567	1569	996	1013	1482	1509	1045	1063	1433	1459

uep – Upper end position of the hook.
dep – Down end position of the hook.

PODEM 10 MT525 H7 V4 4/1 SN 21 20

Electric Wire Rope Hoists

Features

Podem’s wire rope hoist range provides solutions for cranes and replacement applications. There are two series M and MT from 0.8 to 50 t, covering the light, medium and heavy operation modes. A wide range of lifting speeds and lifting heights is available.

Lifting reducer

Planetary gearboxes (2 or 3 stages) developed specially for lifting mechanism offers high reliability and compact size, many options for lifting speeds and low noise level (79-82dB). Lubricated for life for minimum maintenance.

Self breaking lifting motor

3 phase asynchronous electric motors with cylindrical rotor and build-in DC disc brake are available for single or dual speed option. Single polarity motor allows inverter control for smooth acceleration and deceleration of lifting speed.

Wire rope guide

The rope guide consists of three parts: the guide ring, pressure spring and rollers. The pressure spring ensures that the rope sits correctly into the drum groove whilst the guide ring always maintains the rope in the correct position.

Over-load limiter

Dynamometric pin overload limiter. It is optional with many extra features: Load spectrum/ measuring device, lifting calculation etc. All hoists are endowed with overload limiter are with 2 reaction thresholds.

The Body

Stable construction provides reliable and precise operation of the whole mechanism. Precision body component assembling and high quality and controlled welding. Processing of the body on one place.

Control panel

Every hoist is equipped with high quality full-set control panel. Any special requirement (wireless push button, inverters) can be included under request.
