Jual Taiwan Winch Murah

Taiwan Winch Industrial Co, Ltd adalah produsen yang sangat terkenal dari berbagai heavy duty electric winchs. Berdasarkan kemampuan R&D dan pengalaman luas, kami telah merancang dan memproduksi electric winchs yang paling komprehensif untuk aplikasi di bidang kontruksi, toko peralatan rumah tangga, pabrik, dan lain sebagainya.

TAIWAN WINCH - PU Series (700-3000 Kgs)


PU SERIES - 700KGS

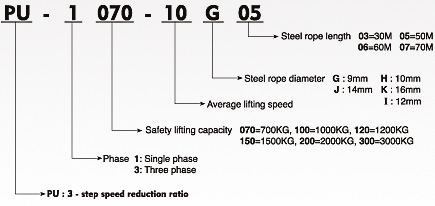

Model PU-1070-10G05
Speed (M/mim) 50HZ 8
60HZ 10
Steel Rope 9mmx50M
Voltage 1PH 220~240V
Motor (KW) 1.3

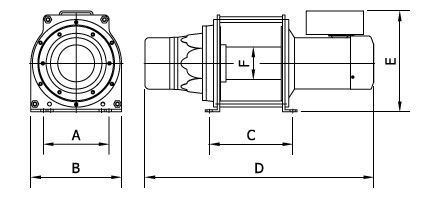

Body dimensions (mm) A 211
B 292
C 268
D 782
E 322
F 105
N.W. (KG) 95
G.W. (KG) 96.8
Product specifications and features are subject to change as a result of technological progress without prior notice.
PU SERIES - 1000KGS (Up to 100m lifting)
Model PU-1100-05H06 PU-1100-05H06
Speed (M/mim) 50HZ 4 4
60HZ 5 5
Steel Rope 10mmx60M 10mmx100M
Voltage 1PH 220~240V 1PH 220~240V
Motor (KW) 1.3 3.3
Body dimensions (mm) A 211 202
B 292 292
C 268 395
D 782 913
E 322 345
F 105
N.W. (KG) 97 106
G.W. (KG) 98.8 108
Product specifications and features are subject to change as a result of technological progress without prior notice.
PU SERIES - 2000KGS (Up to 100m lifting)
Model PU-1200-05J03 PU-1200-10J03 PU-1200-07J07 PU-3200-05J07 PU-3200-10J07 PU-3200-10J10
Speed (M/mim) 50HZ 4 8 6 4 8 8
60HZ 5 10 7 5 10 10
Steel Rope 14mmx30M 14mmx70M 14mmx70M 14mmx100M
Voltage 1PH 220~240V 3PH 220~440V
Motor (KW) 1.8 3.7 2.2 1.8 3.7 3.7
Body dimensions (mm) A 320 320 320 320 260
B 420 420 420 420 390
C 268 268 283 283 503
D 806 816 826 826 1045
E 435 435 435 435 415
F 168
N.W. (KG) 174.7 174.7 210.7 210.7 221.5
G.W. (KG) 176.7 176.7 212.7 212.7 235
Product specifications and features are subject to change as a result of technological progress without prior notice.
PU SERIES - 3000KGS (Up to 90m lifting)
Model PU-3300-07K05 PU-3300-14K05 PU-3300-07K09
Speed (M/mim) 50HZ 6 12 6
60HZ 7 14 7
Steel Rope 16mmx50M 16mmx90M
Voltage 3PH 220~440V
Motor (KW) 2.2 5.5 2.2
Body dimensions (mm) A 320 320 260
B 420 420 390
C 283 283 503
D 836 826 1045
E 435 435 415
F 168
N.W. (KG) 198.7 214.7 210.7
G.W. (KG) 200.7 216.7 212.7
Product specifications and features are subject to change as a result of technological progress without prior notice.
